ACR RCL-100 LED White Searchlight w/URP-103 Wired Point Pad, URC-104 Master Controller URH-103 Wireless Handheld Remote [1976]

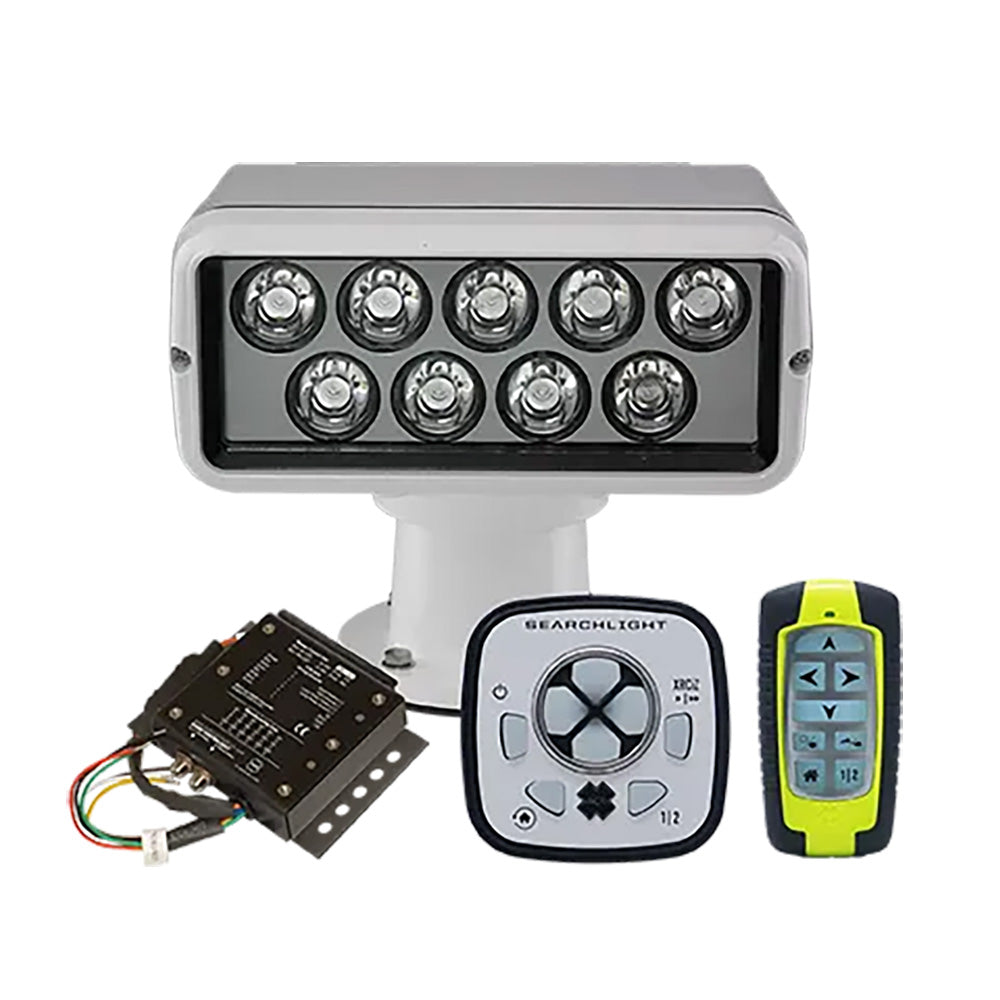

RCL-100 LED White Searchlight with URP-103 Wired Point Pad, URC-104 Master Controller & URH-103 Wireless Handheld Remote

RCL-100 LED Searchlight Kit - 12/24V - White

Not all searchlights are created equally. The LED version of our most popular RCL-100D searchlight provides high-intensity LED performance that pierces through nights and low-lighting conditions with a blazing 220,000 candela.  The RCL-100 LED’s traditionally sleek design makes it an attractive and cost-effective choice for sport yachts, mega-yachts, sport fishers, and light commercial vessels.

The die-cast aluminum case is triple-primed and painted with UV stabilizer to withstand years of exposure in the harsh marine environment.  The light’s internal elevation mechanisms are fully enclosed and provide precise pitch control of the beam while staying protected.  The LED bulbs are efficiently designed to provide over 40,000 operating hours.  The light also includes our Exclusive XRCiZ™ feature that is pre-programmed and allows for the light to independently rotate every 30 days from activation to ensure all bearing surfaces are free of corrosion and all electrical contacts are functional.

This package also includes a URP-102 Point Pad™ controller and a URC-103 Master Controller.  All this makes for a powerful searchlight that is easy to use from multiple control points.

Features:

• Ultra-bright, 9 LED array generating over 220,000 peak candela
• Efficient, long-life LEDs - 40,000 operating hours
• Reduced power consumption
• The controller has state-of-the-art electronics to protect the light from most power surges
• Internal elevation mechanism for precise pitch control of the beam
• Rugged triple-primed and sealed, marine-grade aluminum housing
• Cababe of working with up to three remote Point Pad™ units
• Exclusive XRCiZ™ feature rotates and moves the light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and all electrical contacts functional

Specifications:

• Color - White
• Material - 518 Die-cast aluminum
• Operation - Dash Mount Point Pad™
• Voltage Input - 12/24 VDC
• Rotation - 360° continuous
• Light Pattern - Spot
• Light Distance - 4,501' (1,372 M)
• Dimensions (H x W x D) - 8" x 9" x 8" (20.3 x 22.9 x 20.3 cm)
• Dimensions (Footprint Diameter) - 4.75" (12.7 cm)
• Weight - 7.2 lb  (3.2 kg)

URP-103 Wired Point Pad

The URP-103 Point Pad is designed with modern boaters in mind and features updated styling and a sleek, contemporary aesthetic that blends seamlessly with today’s marine dashboards and control panels – perfect for refits or new installs. Whether you’re upgrading an existing setup or outfitting a new vessel, ACR’s next-gen searchlight point pad brings with it a new level of style, function, and flexibility.

URC-104 Master Controller

The URC-104 Master Controller may be out of sight, but it’s central to everything. Designed to be mounted discreetly behind the dash, the URC-104 is the critical hub that enables seamless remote operation of your RCL-100 LED and RCL-50 LED searchlights. It is the brains behind the operation, ensuring full functionality of both the URP-103 Point Pad Controller and the URH-103 Handheld Wireless Remote.

URH-103 Wireless Handheld Remote

Bringing unmatched convenience and control to your fingertips, the URH-103 Handheld Wireless Remote is a first-of-its-kind handheld remote option for the RCL-100 LED and RCL-50 LED searchlights. The remote features an ergonomic modern design that is built for both form and function. The embossed ACR logo adds a touch of distinction, while backlit buttons ensure seamless operation during nighttime use. Thoughtfully engineered ridges along both sides provide a secure, non-slip grip—even in wet or rough sea conditions—so you stay in control when it matters most.

Specifications:

• Candela: 220,000
• LED: Yes
• Voltage - Input Range (Volts): 12
• Wireless: Yes
• Box Dimensions: 11"H x 11"W x 13"L WT: 13.85 lbs
• UPC: 791659019764
