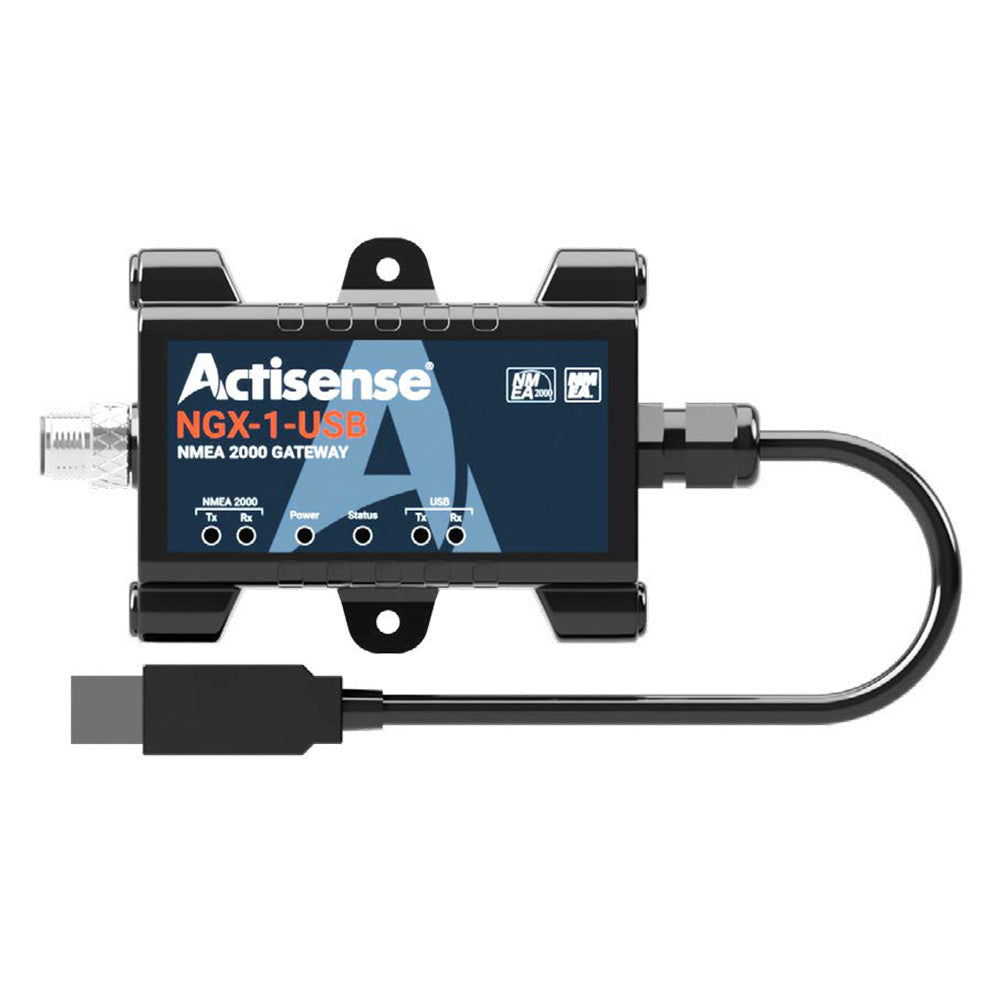

Actisense 0183 to N2K Gateway w/PC Interface, USB Connection [NGX-1-USB]

0183 to N2K Gateway with PC Interface, USB ConnectionIntelligent Gateway technology enables PC interfacing and NMEA data...
Vendor: Actisense
SKU: SPC-102318
Availability: In Stock
Product Type: NMEA Cables & Sensors
$276.45
$307.17
$276.45
Please hurry! Only 27 left in stock
OPENFISHERMAN FALL '23 GIVEAWAY ENDS: 151D 8H 23M 0S
Subtotal: $276.45
10 customers are viewing this product
OpenFisherman.com

Actisense 0183 to N2K Gateway w/PC Interface, USB Connection [NGX-1-USB]

$307.17 $276.45
OpenFisherman.com

Actisense 0183 to N2K Gateway w/PC Interface, USB Connection [NGX-1-USB]

$307.17 $276.45
Description
Description
x

0183 to N2K Gateway with PC Interface, USB Connection

Intelligent Gateway technology enables PC interfacing and NMEA data conversion…

The NGX-1 is an intelligent multi-function gateway, combining the power of our two previous generation products (NGT-1 and NGW-1) into one, cost effective, flexible product.

Configure the NGX-1 to operate as an NMEA 2000 <–> PC interface, or as a bi-directional NMEA 0183 <–> NMEA 2000 conversion gateway.

Features:

  • View all NMEA 2000 network data on Actisense NMEA Reader. The device supports every available PGN in the NMEA 2000 standard.
  • View converted NMEA 0183 data on Actisense NMEA Reader. The device sports the largest conversion library of any gateway.
  • Easily interface with a wide range of PC applications via the NGX-1, such as TimeZero (NMEA 2000) and OpenCPN (NMEA 0183).
  • Configure the Actisense EMU-1, NGW-1 and NGX-1 via Actisense Toolkit using an NGX-1.
  • Connect legacy NMEA 0183 instruments together with new NMEA 2000 networks, greatly reducing upgrade costs.
  • Vital NMEA 2000 diagnostic tool
  • Fully isolated to prevent dangerous ground loops
  • Up to 230,400 baud data transfer rate
  • Advanced configuration using Actisense Toolkit allows Tx / Rx lists and Tx rates to be set
  • Supports Fast Heading at 10Hz
  • Multiple diagnostic LEDs
  • Allows all major PC Chartplotter applications to interface with the NMEA 2000 bus
  • Provides a rule-enforcing firewall between the PC and the NMEA 2000 bus
    • Powerful diagnosis of the NMEA 2000 network using the FREE NMEA Reader software provided
    • Configure and flash-update Actisense products on the bus
    • Upgrade NMEA 0183 equipment to NMEA 2000
    • Allow NMEA 0183 devices to receive vital NMEA 2000 data
    • Use the NMEA 2000 bus to multiplex several NMEA 0183 signals together
    • Reliable, renowned bi-directional conversion engine
    • Supports a wide range of conversions including AIS
    • Easily configurable using Actisense Toolkit

Technical Specifications

Power Supply

  • Supply Voltage (NMEA 2000 Port) - 9 to 30V DC
  • Supply Current (NMEA 2000 Port) - 62mA @ 9V DC
  • Load Equivalent Number (LEN) - 2

NMEA 2000 Port

  • Speed / Baud Rate - 250kbps
  • Connectivity - M12 Male (A coded)

USB Port

  • Compatibility - USB 1.1, 2.0 and 3.0
  • Speed / Baud Rate - 4800 to 230400 Baud
  • Connectivity - Male type A plug moulded onto cable
  • Cable Length - 1.8m

Isolation

  • NMEA 2000 Port to ISO Port - Uses IsoDriveTM, Hi-Pot tested to 1000V
  • NMEA 2000 Port to USB Port - Galvanic Isolation, Hi-Pot tested to 1000V

Mechanical

  • Housing Material Body - Flame retardant Polycarbonate
  • Housing Material End Caps - Flame retardant PBT
  • Weight - 113g

Approvals and Certifications

  • NMEA 2000 - NMEA 2000 Certified
  • NMEA 0183 - Meets IEC 61162-1 & 61162-2 Requirements
  • RoHS and REACH - Compliant
  • Module Certification - KCC / BQB / IC / Wi-Fi / NCC / MIC / FCC DSS / FCC DTS / SRRC / CE, EN 60945:2002 Edition 4 (section 9.3), EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4
  • EMC - EN 300 328 V2.2.2 Radiated Spurious Emissions, FCC Part 15b, ICES-003 Iss 7
  • Environmental Protection    IP67
  • Operating Temperature    -25°C to +70°C
  • Storage Temperature    -30°C to +70°C
  • Recommended Humidity    0 to 93% RH @ 40°C
  • Guarantee    3 years, extended to 5 years upon registration
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Data Interface: NMEA 0183
  • Box Dimensions: 2"H x 6"W x 6"L WT: 0.5 lbs
  • UPC: 5060998710560

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
