![Actisense A2K-TDC-0M5 NMEA2000 Micro Cable Assembly - 0.5M [A2K-TDC-0M5]](http://openfisherman.com/cdn/shop/files/111814XL_medium.jpg?v=1764638130)

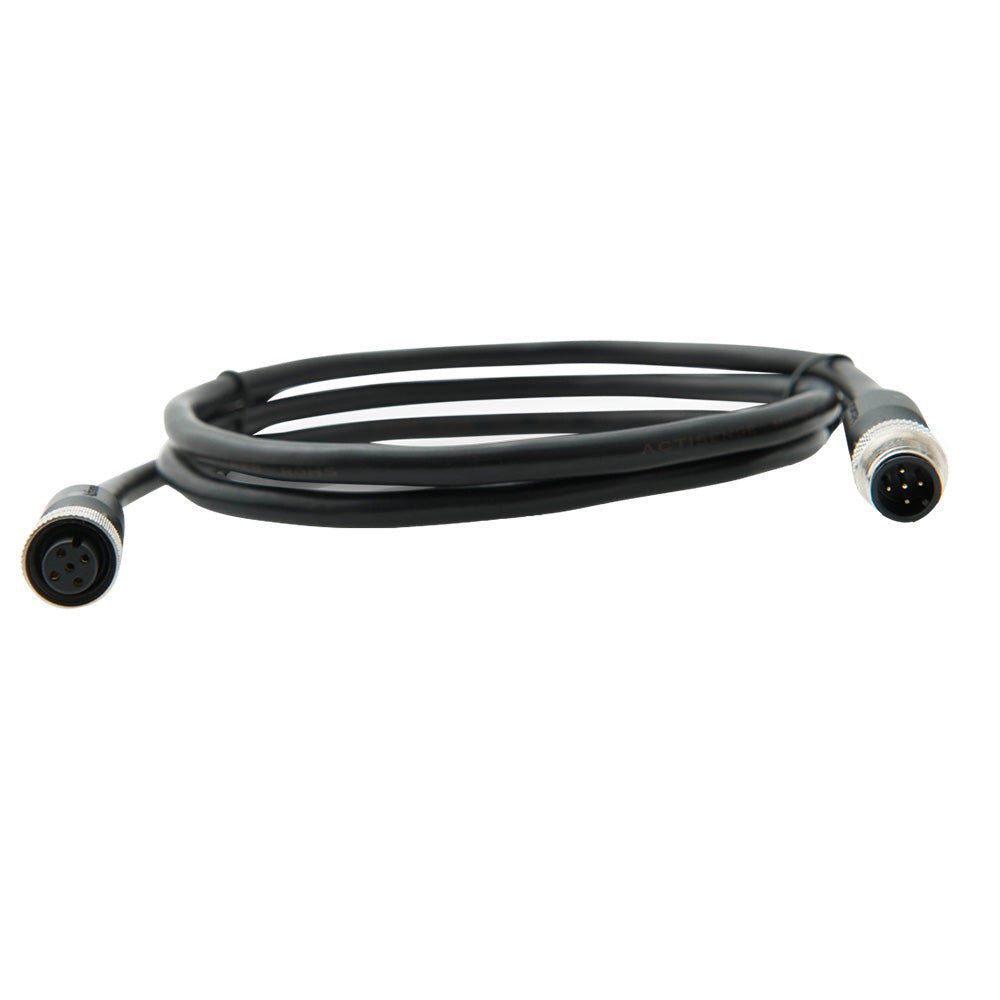

Actisense A2K-TDC-0M5 NMEA2000 Micro Cable Assembly - 0.5M [A2K-TDC-0M5]
A2K-TDC-0M5 NMEA2000 Micro Cable Assembly - 0.5MAvailable in various lengths, the cable assemblies can be used as...
- $27.00
$30.00- $27.00
- Unit price
- per
Please hurry! Only 101 left in stock
OPENFISHERMAN FALL '23 GIVEAWAY ENDS:
151D
8H
23M
0S
Subtotal:
$27.00
10 customers are viewing this product
Couldn't load pickup availability
![Actisense A2K-TDC-0M5 NMEA2000 Micro Cable Assembly - 0.5M [A2K-TDC-0M5]](http://openfisherman.com/cdn/shop/files/111814XL_1200x.jpg?v=1764638130)
Description
xA2K-TDC-0M5 NMEA2000 Micro Cable Assembly - 0.5M
Available in various lengths, the cable assemblies can be used as either a drop cable from a NMEA 2000 backbone or to extend the length of the backbone cable.
Actisense Lite cable assemblies allow quick installation and come with quality reassurance as only the Actisense UL-certified cable is used.
NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.
NMEA 2000 Lite cable can be used to create a backbone up to 100 meters in length. If the backbone length required exceeds 100 meters, the center of the bus can be extended with an NMEA 2000 mini cable to keep the outer Lite sections to the 100-meter maximum.
The maximum length of a drop cable (distance from the backbone) is 6 meters. It is important to limit each drop length to the minimum required, as the total of all drop lengths must not exceed 72 meters.
The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.
Technical Specifications:
- Rated Current - 3A
- Rated Voltage - 60VDC
- Male Contact - Brass, gold-plated
- Female Contact - Phosphor bronze, gold plated
- Contact Carrier - PBT, black
- Contact Polarization - Standard M12 -“A”- polarization
- Mating Thread - M12
- Screw Cap - Brass, nickel plated
- O-Ring Seal - Rubber, black
- Housing - PVC, black
- Power Pair - 22 AWG (19-strand tinned copper)
- Data Pair - 24 AWG (19-strand tinned copper)
- Drain - 22 AWG (19-strand tinned copper)
- Braid - 37 AWG (tinned copper)
- Jacket Material - 0.8mm Nom. PVC, black
- Jacket Outer Diameter - 6.85mm ±0.254mm
- Weight - 67g
- Protection - IP67 (when mated)
- Operating Temperature - -20°C to +70°C
- Storage Temperature - -40°C to +85°C
Specifications:
- Connection Gender: Male-Female
- Data Interface: NMEA 2000
- Cable Length (Meters): 0.5m
- NMEA 2000 Connectors: Backbone/Drop Cables
- Box Dimensions: 1"H x 4"W x 5"L WT: 0.2 lbs
- UPC: 5060998710201
Owner's Manual (pdf)
Brochure (pdf)
