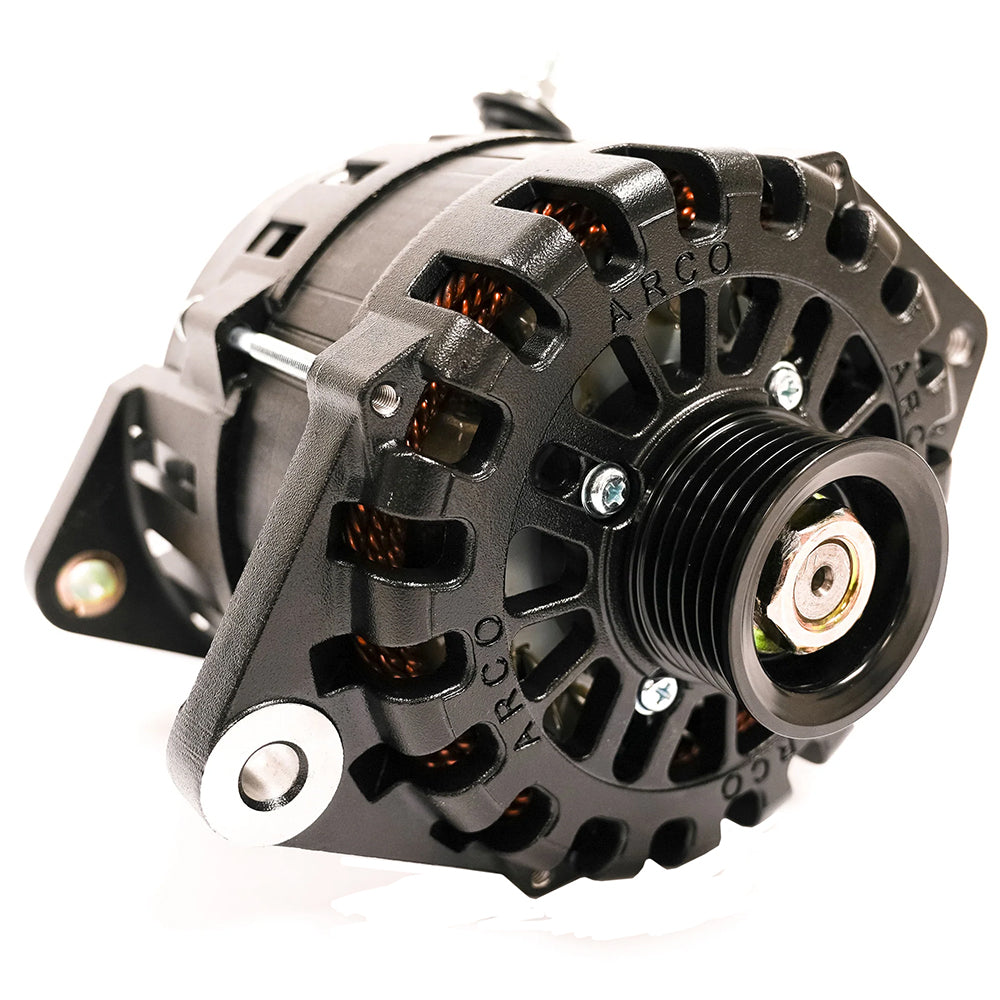

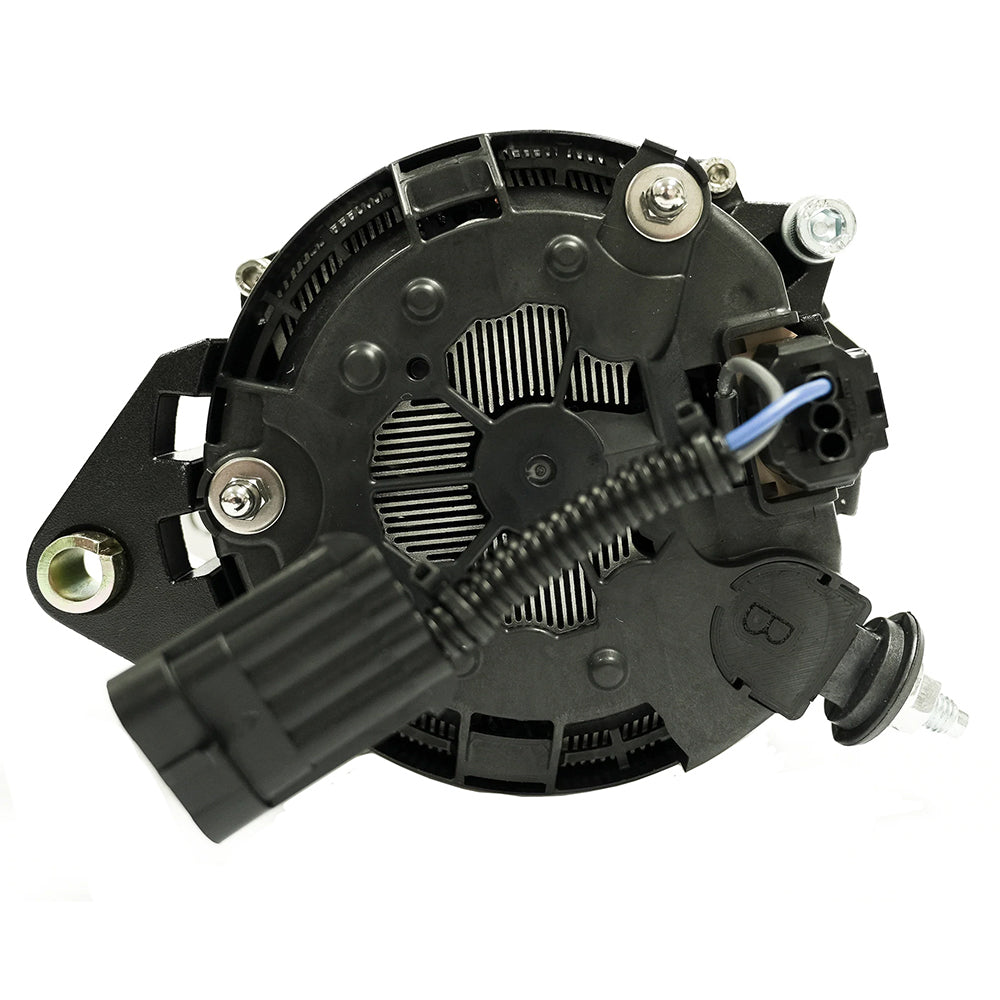

ARCO Marine Zeus A225S 3.15 Alternator w/Isolated Ground Terminal Block [4011]

ARCO Marine Zeus A225S 3.15 Alternator w/Isolated Ground Terminal Block [4011]

Zeus A225S 3.15 Alternator with Isolated Ground & Terminal BlockThe highest power output alternator in its size/class. Features:...
Vendor: ARCO Marine
SKU: SPC-107516
Availability: In Stock
Product Type: Alternators
$877.80
$999.90
$877.80
Please hurry! Only 3 left in stock
OPENFISHERMAN FALL '23 GIVEAWAY ENDS: 151D 8H 23M 0S
Subtotal: $877.80
10 customers are viewing this product
ARCO Marine Zeus A225S 3.15 Alternator w/Isolated Ground Terminal Block [4011]

ARCO Marine Zeus A225S 3.15 Alternator w/Isolated Ground Terminal Block [4011]

$999.90 $877.80
ARCO Marine Zeus A225S 3.15 Alternator w/Isolated Ground Terminal Block [4011]

ARCO Marine Zeus A225S 3.15 Alternator w/Isolated Ground Terminal Block [4011]

$999.90 $877.80
Description
Description
x

Zeus A225S 3.15 Alternator with Isolated Ground & Terminal Block

The highest power output alternator in its size/class.

Features:

  • Engineered for high energy production.
  • Suitable for marine, RV, military, and commercial applications.
  • Rapidly charges large battery banks.
  • Coolest operating temperatures for increased performance, running 8-20% cooler than incumbent alternators due to:
  • Heat shedding coatings
  • Rectifier located on housing exterior
  • Dual cooling fans
  • OEM components
  • Optimized for performance at idle speeds.
  • Reduces the need for a generator by creating additional power with your engine.
  • Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A225S cooler for sustained amperage output.
  • Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging.
  • SAE J1171 Certified.
  • Models are available with an internal/external voltage regulator.
  • Proudly made in the U.S.A.

Technical Specifications:

  • Voltage - 12v
  • Field Type - P
  • Rotor Poles - 16
  • Stator Size - 130mm
  • Frame Size - Small
  • Weight - 12 lbs/5.4 kg
  • Regulation - Internal/External (Internally regulated with adaptor for optional external regulation.)
  • Output Voltage - 14.1v (Default)
  • Finish - (Black) Cerakote or E-coating
  • Cut-In RPM - 1,061 Alternator RPM
  • Maximum Alt RPM - 19,000
  • Battery Post - M8 Thread Post, Side Mount
  • Standard Pulley - 49K6 (6-groove, 49mm)
  • Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
  • Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
  • Diodes - 6 positive, 6 negative, 50A Rated, Avalanche
  • Max Output (Cold, 9,000 RPM) - 254 Amps
  • Sustained Cruising Output (Hot, 6,000 RPM) - 187 Amps
  • Sustained Idle Output (Hot, 3,000 RPM) - 157 Amps
  • Max Continuous Operating Temperature - 110°C / 230°F

Mounting Application:

  • Replaces most small case styles using a 3.15" saddle style mount (e.g., Hitachi, Lucas, Mitsubishi). Most Yanmars. Requires Standard single "V" belt upgrading to a Serpentine System

Quick Guide (pdf)
Brochure (pdf)
