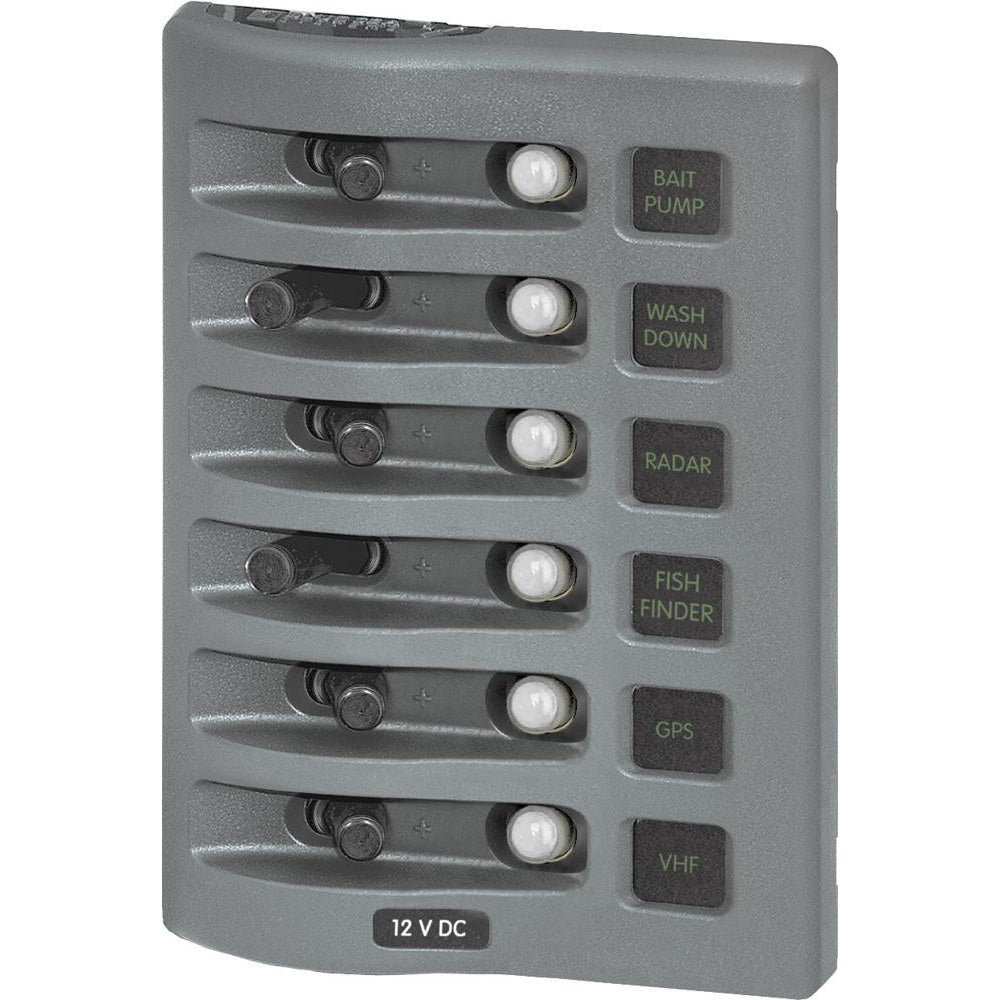

Blue Sea 4376 WeatherDeck Water Resistant Circuit Breaker Panel - 6 Position - Grey SPC-20423
WeatherDeck™ Water Resistant Circuit Breaker Panel
- Rated IP67-temporary immersion for 30 minutes
- Designed for flybridge and open cockpit applications
- Independent label backlighting allows switching and dimming
- Compatible with all Blue Sea Systems Digital Dimmers
- Each panel can be mounted in four different orientations
- Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.
- Weatherproof: Waterproof
- Positions: 6
- Nominal Voltage: 12v / 24v DC
- Circuit Protection: Circuit Breaker
- Maximum Amperage: 15A @ 12v DC (per circuit) / 9A @ 24v DC (per circuit)
- Panel Cumulative Rating: 45A
- Backlit Label: Green LED
- Backlighting Amperage: 10mA/Illuminated Circuit
- Backlighting Voltage: 12 or 24v DC
- Height: 6.0"
- Width: 4.25"
- Depth: 3.5"
- (6) 4135 Push Button Reset Only Circuit Breaker Boot - Clear
- (6) 4138 WeatherDeck® Toggle Switch Boot - Black
- (6) 4150 WeatherDeck® Toggle Switch SPST - ON-OFF
- (1) 4215 Waterproof DC Label Kit - 30 Black Square Labels V1
- (6) 7056 Push Button Reset Only Quick Connect Circuit Breaker - 15 Amps
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Waterproof: Waterproof
- Voltage: 12v
- AC/DC: DC
- Max Breaker Quantity: 6
- Box Dimensions: 4"H x 6"W x 9"L WT: 1.4 lbs
- UPC: 632085043766
Quick Guide (pdf)
