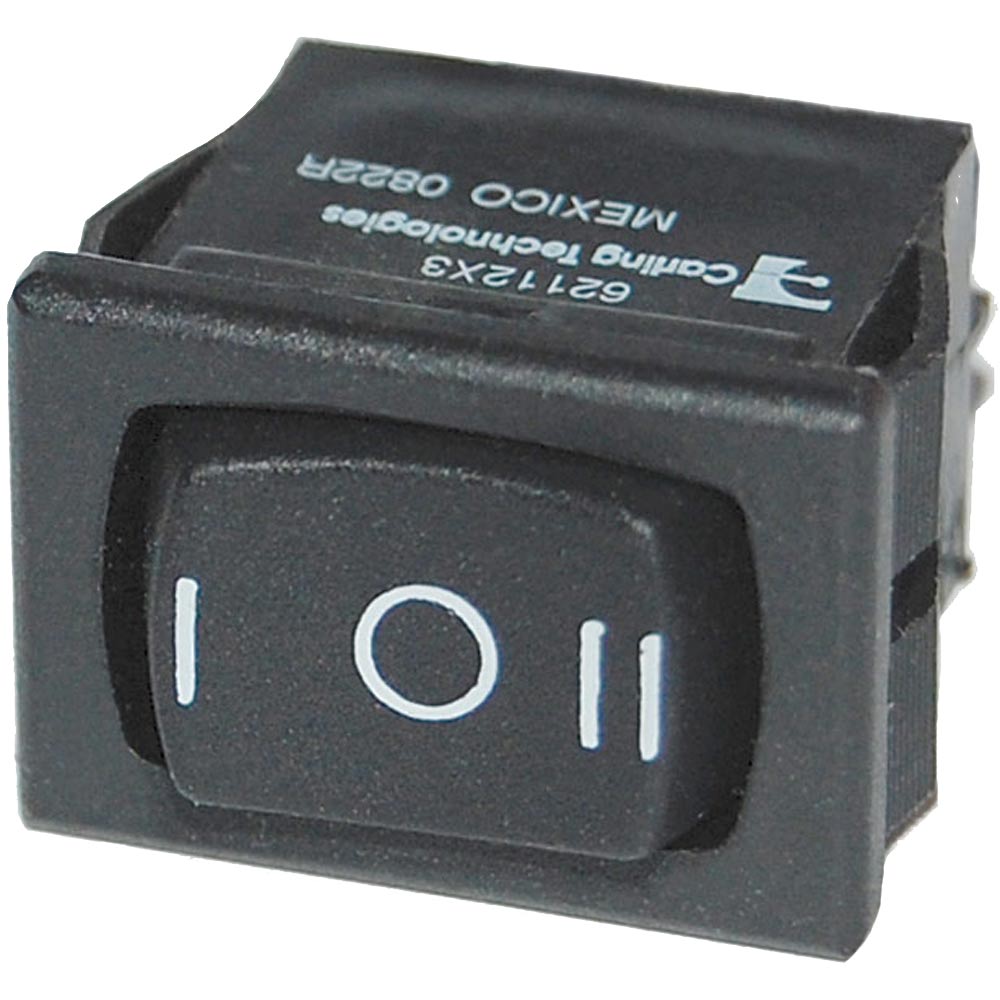

Blue Sea 7492 360 Panel - Rocker Switch DPDT - ON-OFF-ON [7492]
360 Panel - Rocker Switch DPDT - ON-OFF-ONFor use in 360 panels in the following modules: Gauge,...
- $3.99
$5.34- $3.99
- Unit price
- per
Please hurry! Only 1 left in stock
OPENFISHERMAN FALL '23 GIVEAWAY ENDS:
151D
8H
23M
0S
Subtotal:
$3.99
10 customers are viewing this product
Couldn't load pickup availability
Description
x360 Panel - Rocker Switch DPDT - ON-OFF-ON
For use in 360 panels in the following modules: Gauge, DC Push Button + Switch, and DC Battery Management
The 360 Panel System uses an open frame to mount a broad selection of modules, allowing multiple functions to be combined in a single panel.
This innovative design offers a wide choice of panel features, can accommodate future changes and permits rapid assembly. With options ranging from battery management to source selection, the 360 Panel System provides unmatched design flexibility.
Specifications:
-
Action*:tON-OFF-ON
-
Pole/Throw**:tDPDT
-
Maximum Amperage***:8A @ 125V AC / 5A @ 12V DC / 5A @ 24V DC / 4A @ 250V AC
-
Terminal Type:tWire Leads
-
Terminal Size: 6.00" (152.4mm)
- Weight:0.08lb (0.04kg)
*Action () = Momentary ON
**Pole/Throw:
SPST - Single Pole/Single Throw
SPDT - Single Pole/Double Throw
DPST - Double Pole/Single Throw
DPDT - Double Pole/Double Throw
***Maximum Amperage - Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Throw/Pole: DPDT
- Color: Black
- Action: On/Off/On
- Box Dimensions: 1"H x 2"W x 7"L WT: 0.2 lbs
- UPC: 632085074920
Quick Guide (pdf)
Brochure (pdf)
