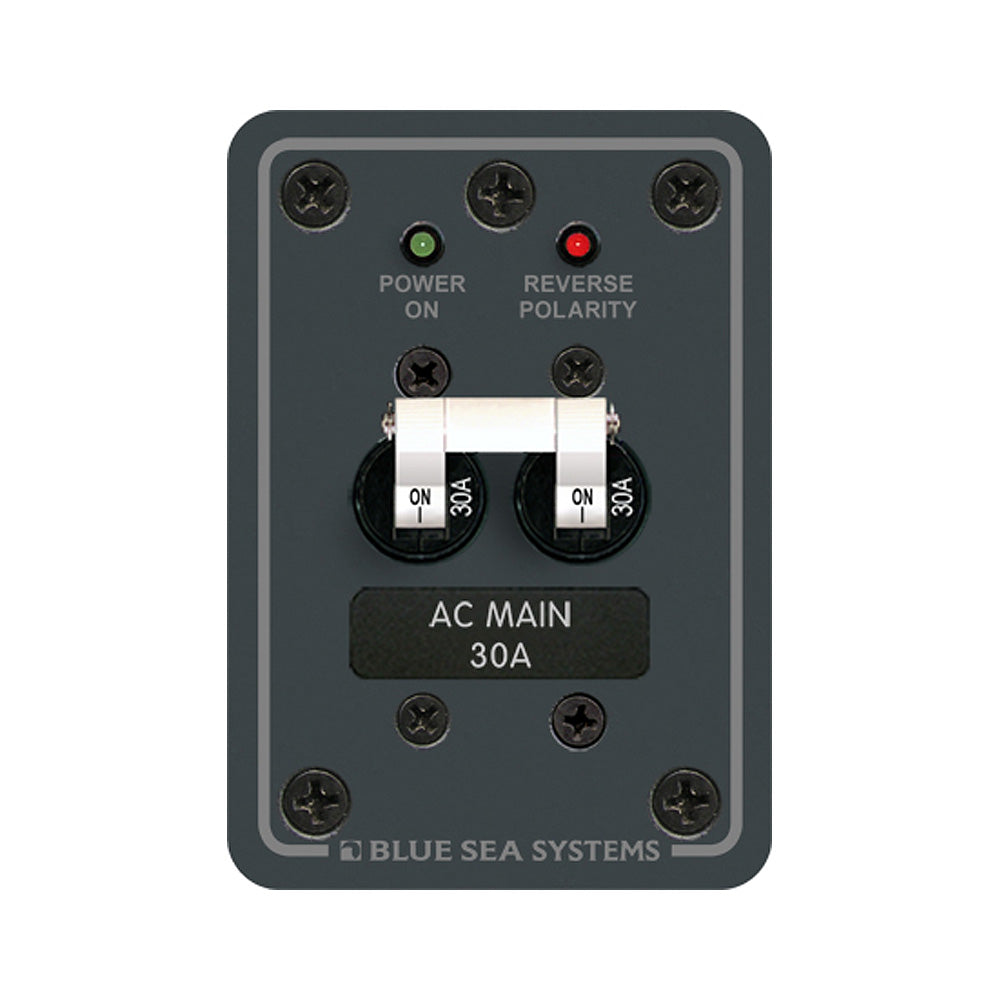

Blue Sea 8077 AC Main Only Toggle Circuit Breaker Panel SPC-19053
8077 AC Main Only Toggle Circuit Breaker Panel
- Red reverse polarity indicating LED
- Safety ground screw on panel back
- Combines switching and circuit protection into a single device
- "Trip Free" design cannot be held "ON" during fault current condition
- Nominal Voltage: 120v AC
- Maximum Voltage: 277v AC / 65v DC
- Height: 3.75"
- Width: 2.63"
- (1) 8034 LED - 120v AC Green
- (1) 8066 LED - 120v AC Red
- (1) 7238 A-Series White Toggle Circuit Breaker - Double Pole 30A (Main)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- AC/DC: AC
- Max Breaker Quantity: 1
- Voltage: 120v
- Box Dimensions: 3"H x 4"W x 7"L WT: 0.7 lbs
- UPC: 632085000004
