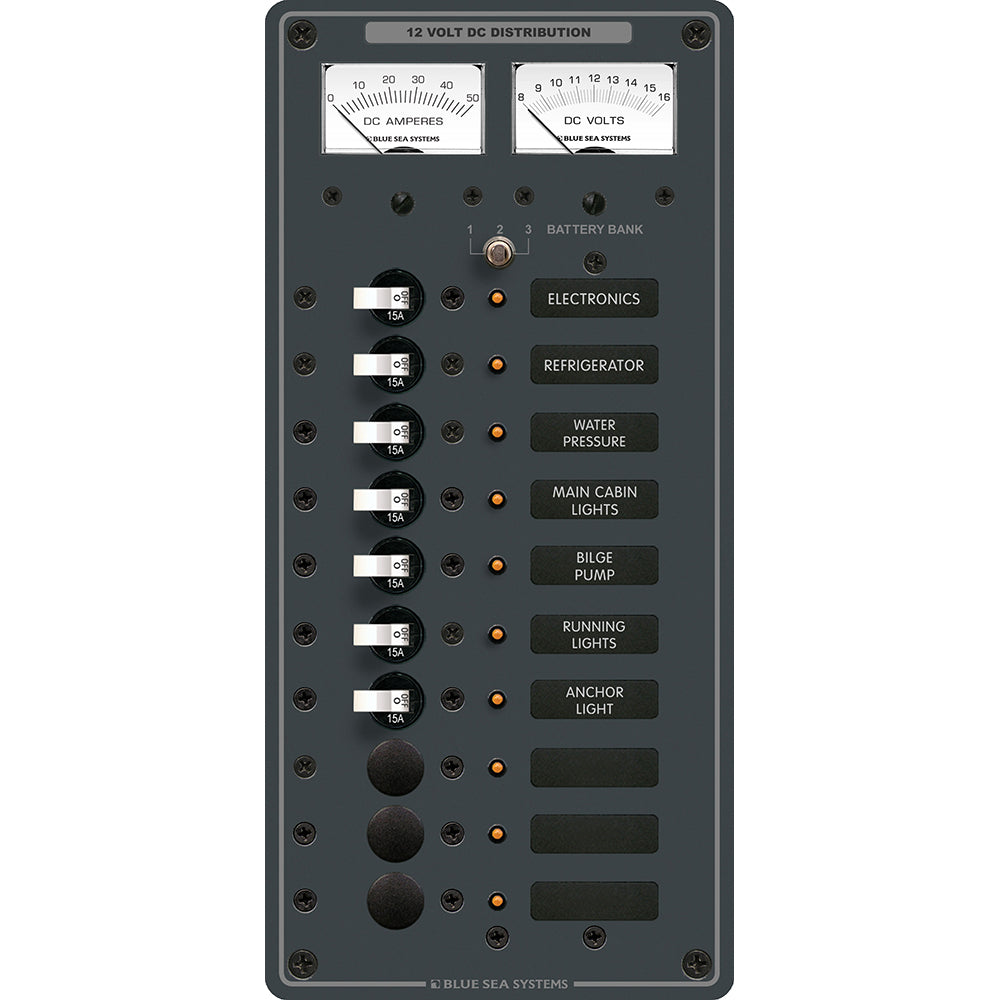

Blue Sea 8082 DC 10 Position Toggle Branch Circuit Breaker Panel SPC-13972
8082 DC 10 Position Toggle Branch Circuit Breaker Panel
- All positive, negative and grounding buses installed, fully pre-wired
- Includes set of 30 common DC labels
- Label backlighting pre-installed
- All LEDs installed
- Detailed installation instructions and cutout template
- 8028, 8-16 Volt DC Micro Voltmeter
- 8041, 0-50 Amp DC Micro Ammeter
- Owner upgradeable to 24 Volts DC with 8243, 10-32 Volt DC Micro Voltmeter
- 7 15A Single Pole circuit Breakers
- Positions: 10
- Nominal Voltage: 12v DC
- Maximum Amperage: 50A
- Height: 11.25"
- Width: 5.25"
- Depth: 2.5"
- Weight: 3.35 lbs
- (7) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A
- (1) 8030 Basic DC Panel Label Set - 30 Labels
- (1) 8028 DC Micro Voltmeter - 8 to 16V DC (Meter)
- (1) 8041 DC Micro Ammeter - 0 to 50A w/ Shunt (Meter)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Max Breaker Quantity: 10
- AC/DC: DC
- Voltage: 12v
- Box Dimensions: 5"H x 10"W x 13"L WT: 3.3 lbs
- UPC: 632085080822
