A200 Class A AIS Transceiver

The A200 Class A is both SOLAS and Inland Waterway certified and offers superior performance through its advanced, next-gen technology. The A200 has been engineered for even the harshest marine environments, undergoing extensive testing by independent experts to ensure it is waterproof and unaffected by extreme temperatures, shock, and vibration so you don't need to worry about reliability issues impacting performance or longevity.

The A200 is easy to install and will seamlessly connect to your ECDIS and other bridge systems. The A200 delivers comprehensive AIS functionality, such as alerts, target filters, vessel information lists, real-time weather, and more.

With its integrated color display, the A200 plays an important role in tracking, collision avoidance, and CPA when vessels are in busy port areas. The combination of advanced performance, trusted reliability and competitive price make the A200 the best-value AIS Class A in the market by far.

Features:

  • IMO SOLAS certified AIS Class A
  • EU Inland Waterway certified ruggedized and impervious to extreme environments – water (IPx6, IPx7), dampness, shock, vibration, and temperatures
  • High performance latest generation GPS
  • Suitable internal or permanent external installation
  • Robust ergonomic button and rotary-knob user interfaces with configurable multi-lingual menu options

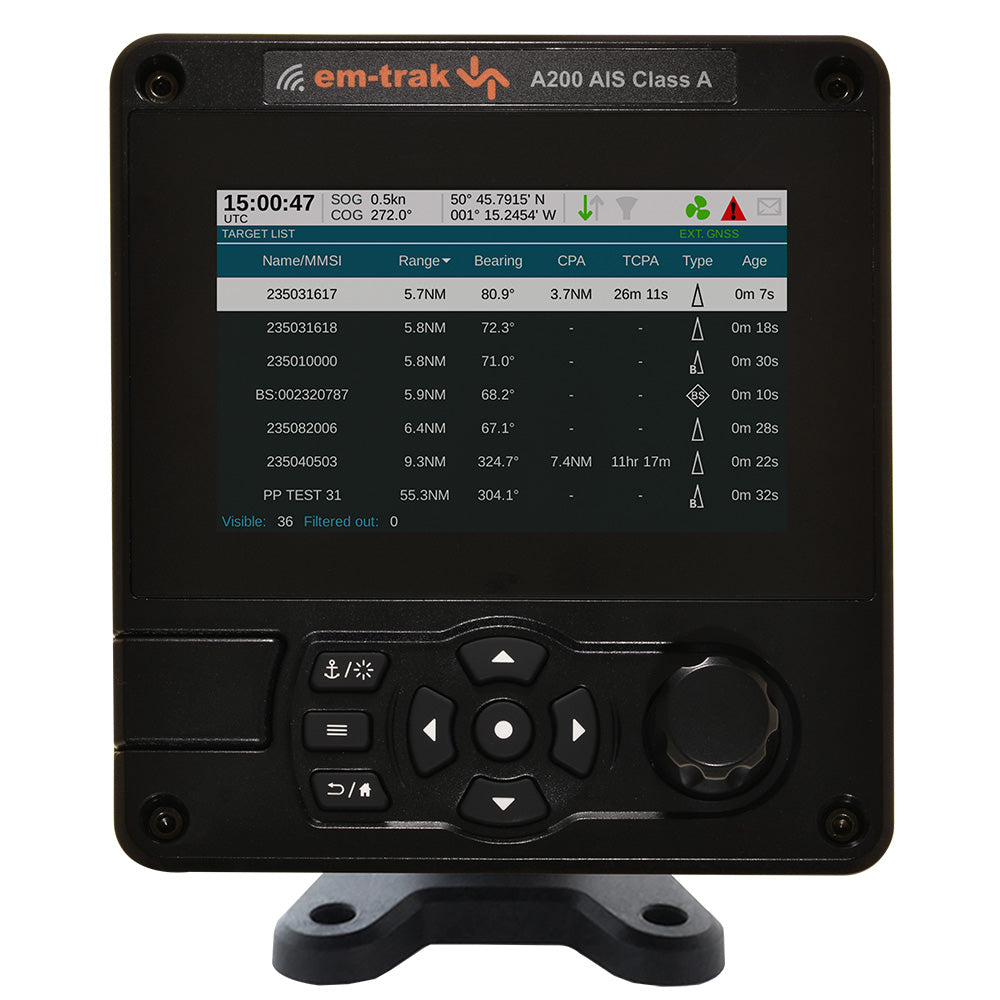

  • Integrated high-definition color display with night mode
  • ENC chart (C-Map) with configurable AIS target overlay
  • Silent mode – AIS transmissions are stopped, all AIS messages continue to be received
  • Integrated WiFi
  • Pilot plug cable and junction box accessory options

Physical & Environmental Specifications:

  • Size (H x W x D): 152 x 165 x 95mm
  • Weight: 1.1kg
  • Operating temperature: -25°C to +55°C
  • Storage temperature: -25°C to +70°C
  • Ingress protection: IPx6 and IPx7

Electrical Specifications:

  • Supply voltage: 12V or 24V DC
  • Supply voltage range: 9.6V - 31.2V DC
  • Average current (at 12V): 520mA
  • Peak current: 6A
  • Average power consumption (at 12V): 6.2W
  • Galvanic isolation: NMEA 0183, NMEA 2000, power supply, VHF antenna port

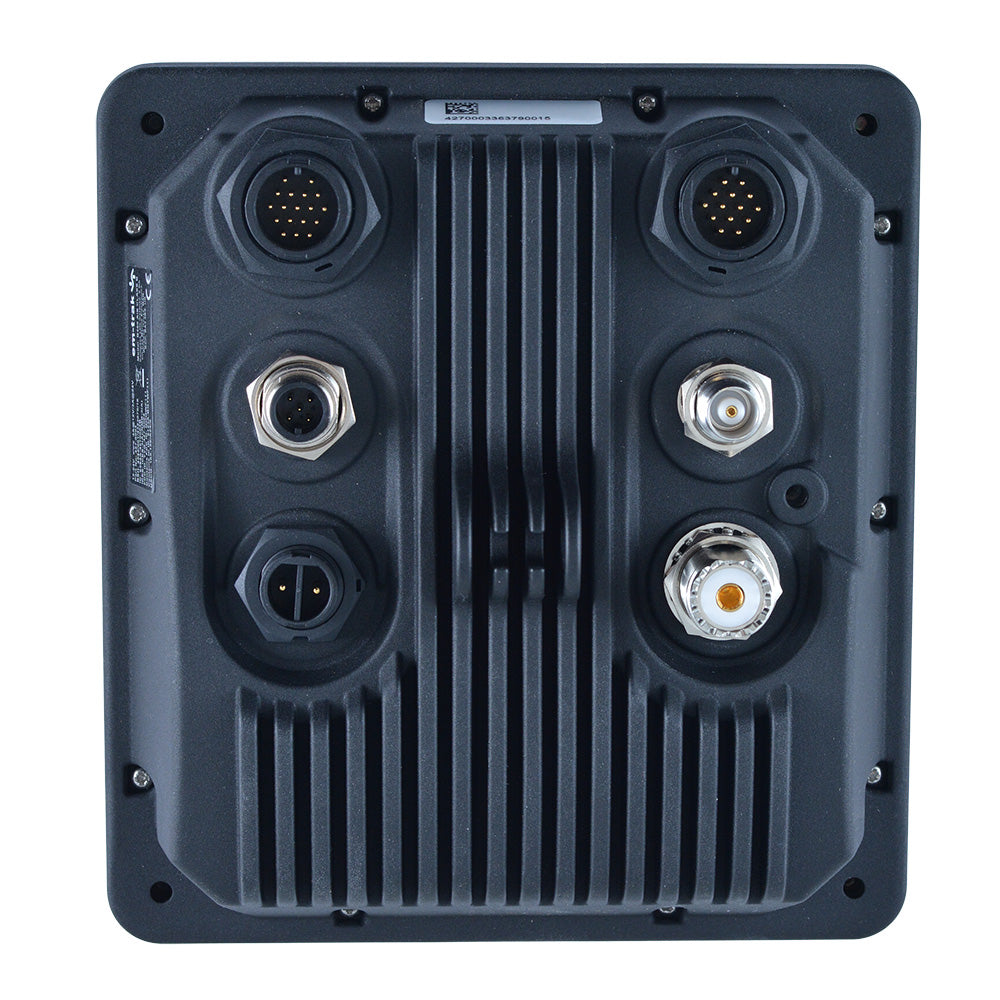

Connectors:

  • VHF antenna: SO-239
  • GNSS: TNC
  • Power: 2-way circular multipole
  • NMEA 0183/silent mode/blue sign: 14-way circular multipole
  • NMEA 0183/alarm relay: 18-way circular multipole
  • NMEA 2000: 5-way Micro-C connector

Data Interfaces:

  • NMEA 0183: 3 x input ports, 3 x bi-directional ports
  • NMEA 2000: NMEA 2000 Ed 3.101, LEN=1
  • WiFi: IEEE 802.11 (a/b/g), client mode, and access point mode supported. (5 connections in access point mode)

Standards Compliance:

  • AIS standards: IEC 61993-2 Ed. 3
  • Product safety standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013
  • Environmental standards: IEC 60945 Ed. 4
  • Serial data interface standards: IEC 61162-1 Ed 5.0, IEC 61162-2 Ed 1.0
  • NMEA 2000: NMEA 2000 Ed 3.101
  • GNSS performance standards: IEC 61108-1 Ed 2.0, IEC 61108-02 Ed 1.0

GNSS:

  • Systems supported: GPS, GLONASS, BeiDou, Galileo (two of any combination, three including GPS, Galileo)
  • Channels: 72
  • Internal/external antenna: External only
  • Time to first fix from the cold start: 26s

VHF Transceiver:

  • VDL access scheme: SOTDMA
  • Operating frequency: 156.025MHz - 162.025MHz
  • Channel bandwidth: 25kHz
  • Receivers/transmitters: 3 x receivers, 1 x transmitter
  • AIS receiver sensitivity (20% PER): -111dBm
  • AIS transmitter power: 12W (+41dBm)

User Interface:

  • Screen: 5-inch 800 x 480 full color LCD
  • Buttons: Rotary encoder for selection and entry, 4 menu keys, and 4 direction keys
  • SD card interface: Micro SD card interface for logging and chart cards (not available from em-trak)

GNSS Antenna:

  • Size: 85 x 70mm
  • Weight: 470g
  • Ingress protection: IPx6 and IPx7
  • Mounting: 1 inch 14 TPI pole mount required
  • GNSS systems supported: GPS, GLONASS, Galileo, BeiDou

In the Box:

  • 1 x AIS transceiver
  • 1 x Power cable
  • 1 x Mounting bracket & fixings pack
  • 1 x 14 Way data cable
  • 1 x Product manual and document pack
  • 1 x 18 Way data cable
  • 1 x GPS Antenna
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • AIS Class: A
  • Antenna Included: Yes
  • Display Included: Yes
  • Function: Receive/Transmit
  • GPS Included: Yes
  • Box Dimensions: 5"H x 10"W x 15"L WT: 6.3 lbs
  • UPC: 602573090091

Quick Guide (pdf)
Owner's Manual (pdf)
