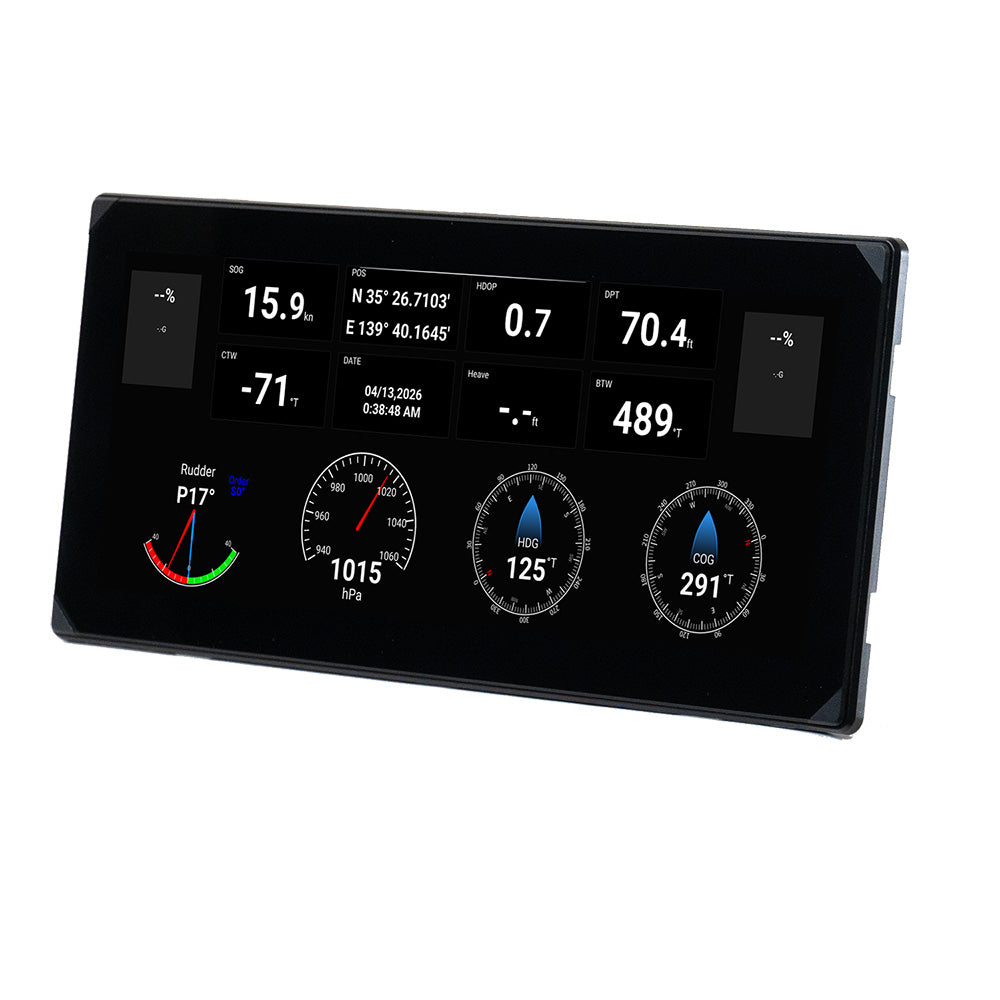

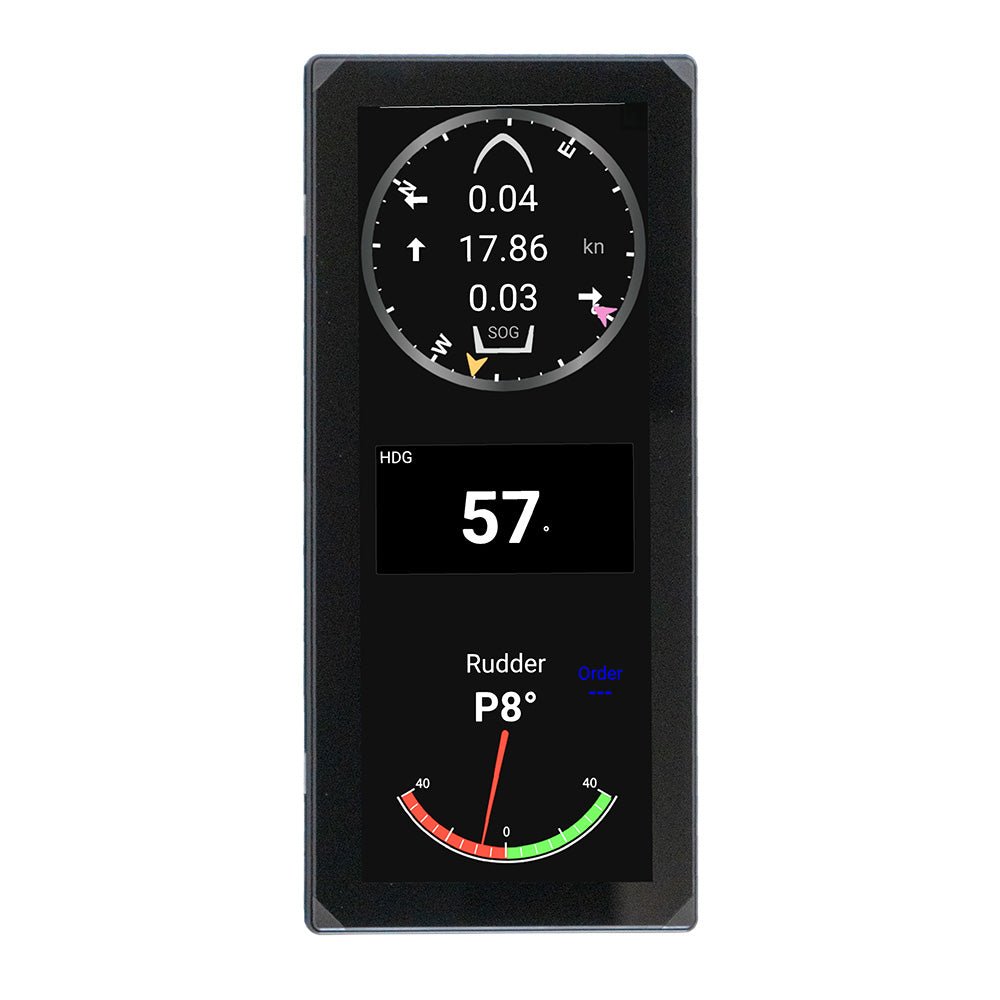

Furuno RD1226W 12" Ultra-Wide Remote Display [RD1226W]

RD1226W 12" Ultra-Wide Remote Display

Featuring bright, vivid touchscreens that can be displayed in landscape or portrait mode.

The 12-inch Ultra-Wide connected information displays provide a centralized information hub for vessel data, 3rd Party applications, and networked sensors, built to enhance your existing TZtouchXL, TZtouchE, or TZMAP system with large numerical, graph, or graphical formats.

These connected information displays deliver and organize the data you need the most and can be installed virtually anywhere, landscape or portrait, allowing users to monitor critical data and stay connected to their boat like never before.

• Data Type: NMEA2000
• Display Size: 12.3 inches Ultra-Wide
• Display Type: Color Multi-Touch LCD
• Power Usage: 12-24 VDC

Complete Vessel Awareness

Monitor critical navigation information throughout your vessel, including:

• Position
• Depth
• COG/SOG
• Heading
• Course Through Water
• Speed Through Water
• Rate of Turn
• Waypoint Guidance
• Cross Track Error
• Distance & Time to Destination
• Highway Mode
• AIS Display

Environmental Intelligence

• Stay informed of changing conditions with:
• True & Apparent Wind
• Wind Speed & Direction
• Atmospheric Pressure
• Air Temperature
• Sea Surface Temperature
• Humidity
• Dew Point
• Wind Chill

Engine and Fuel Monitoring

View real/time engine and fuel information including:

• RPM
• Fuel Rate
• Fuel Economy
• Fuel Consumption
• Distance to Empty
• Time to Empty
• Oil Pressure
• Oil Temperature
• Coolant Pressure
• Engine Load
• Engine Hours
• Tank Info: Fuel, fresh/waste water, etc.
• Boost Pressure
• Alternator Voltage
• Transmission Status

Vessel Motion Insights

Monitor:

• 3-Axis Speed
• Pitch
• Roll
• Heave
• Set & Drift
• Course Performance
• Velocity Made Good

Screen Mirroring

Display iPhone Apps at Your Helm

Mirror your compatible iPhone's screen directly on an RD Series display using a USB Type-C connection. Whether you're running TZ iBoat or another supported app, everything displayed on your iPhone appears on the larger RD touchscreen for enhanced visibility and operation.

Connected Control For The Modern Vessel

The RD Series delivers more than information. Through NavNet Command Center integration, you can access and control compatible 3rd Party onboard systems directly from the display. Lightning, digital switching, audio entertainment, power management, and specialized marine applications can all be conveniently managed from a centralized touchscreen interface. With additional applications planned for future expansions, the RD Series is designed to grow alongside today's connected vessels.

What's Included?

• Remote Display Unit
• NMEA2000 Drop Cable ( Length 6 m) 7. Cutting Template (For Flush Mounting)
•  Power Cable (Length 1.5 m) 8. Operator’s Manual
•  Suncover (1) 9. Screw Cover (5)
•  Tapping Screw (4)
• Cushion (For Flush Mounting)
• Cutting Template (For Flush Mounting)
• Operator’s Manual
• Screw Cover (5)

Specifications:

• Instrument Function: Multifunction
• Screen Size: 12"
• Shape: Rectangular
• Transducer Type: Not Included
