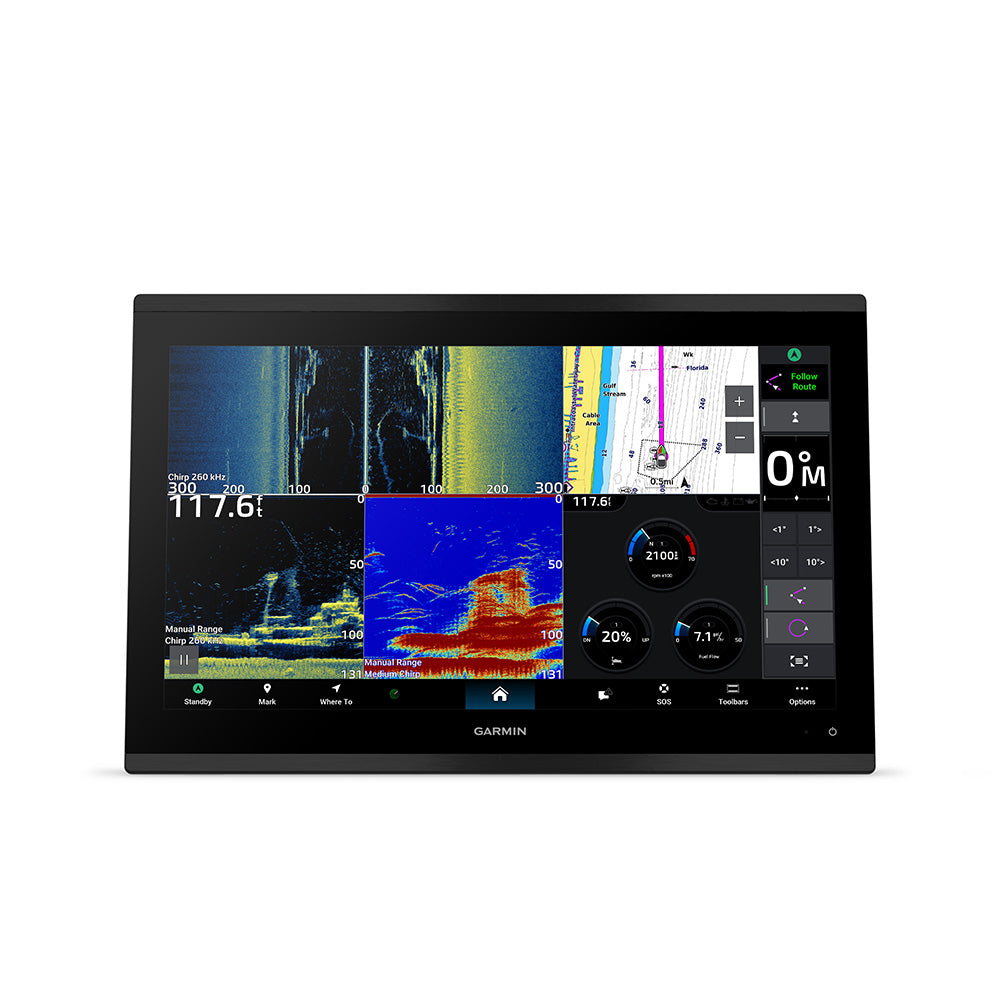

Garmin GPSMAP 9217xsv Premium Chartplotter/Sonar Combo w/Garmin Navionics+ [010-03177-03]

GPSMAP® 9217xsv Premium Chartplotter/Sonar Combo with Garmin Navionics+™

PARADISE STARTS HERE

It’s the integrated 4K touchscreen chartplotter for captains and anglers who demand the best. Enjoy edge-to-edge clarity and luxury on a glass helm with premium design and materials.

Features:

• Premium 4K IPS sunlight-readable touchscreen display
• Up to 7 times faster processing power than previous generations
• See fish like never before with our best sonar ever
• Preloaded Garmin Navionics+™ charts with Auto Guidance+™ technology¹
• Gigabit speeds on the Garmin Bluenet™ network
• Network with multiple chartplotters, cameras, and more

Premium Chartplotter

The 4K IPS sunlight-readable touchscreen display and edge-to-edge design provide a seamless and luxurious modern look.

Faster. Much Faster.

Processing power is 7 times faster than previous generations for superior performance; draw charts quickly, and calculate Auto Guidance+ routes¹ with lightning speed with an optional Garmin Navionics+ subscription.

High-Definition Sonar

Fish in stunning high definition with built-in 1 kW xCHIRP and Garmin RapidReturn™ sonar. Excellent target separation helps you see crisp and clear fish targets all around.

Garmin Bluenet Network

Build extensive networks with multiple chartplotters, cameras, radars, and sonars — and enjoy gigabit-speed

Entertainment Options

Enjoy audio and video integrations that allow you to show and hear the same video throughout the screens and speakers on your network.

Garmin Sailassist™ Sailing Features and Sailing Polars

View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, and more. Plus, the polar table shows key data, so you know whether you need to adjust sail trim.

Connect Your Ecosystem

Take command through digital system integrations to monitor, automate, and control your vessel. The chartplotter uses the NMEA 2000® network to connect to your compatible accessories.

Connect

• Software Updates: Get wireless software updates via the ActiveCaptain® app with your compatible smartphone or tablet.
• Engine Monitoring: Keep tabs on engine performance with extensive engine integration.
• Custom Look: Manufacturers can customize the homepage layout and splash screen for a brand-tailored experience.

Navigate

• Mapping: Navigate with optional Garmin Navionics+ charts that include Auto Guidance+ technology, daily updates, and more¹ (subscription required).
• Premium Charts: Get support for Garmin Navionics Vision+™ charts with premium relief shading and satellite imagery.
• Know Where You Are: Get your precise location with the built-in dual-frequency 10 Hz GPS.
• Autopilot: Control the autopilot with any compatible chartplotter on the network with autopilot integration.

Integrate

• Connect Cameras: Get extensive camera support and control to see footage directly on the chartplotter.
• Control with Your Watch: Connect to your chartplotter with your compatible Garmin smartwatch.
• Wireless Connectivity: Connect compatible devices with integrated Bluetooth® and ANT® technologies.
• Fish Mapping: Get comprehensive fishing data with the Fish Mapping™ feature from SiriusXM® Radio (accessory purchase and subscription required).
• Verbal Commands: Use spoken commands to control the chartplotter through your compatible headset or quatix® smartwatch.
• Weather-Resistant:
• The GPSMAP 9000 chartplotter is built for harsh marine conditions with an IPX7 water-resistance rating.

What's In The Box?

• GPSMAP 9217xsv premium chartplotter
• Power cable
• Backbone/drop cable (2 meters) and T-connector for the NMEA 2000® Network
• Flush mount kit
• Protective cover
• Trim piece snap covers
• Documentation

Specifications:

General:

• Dimension: 16.80" x 11.23" x 3.60"
• Weight: 13.0 lbs
• Water Rating: IPX7
• Touchscreen: Yes
• Display Type: 4K, IPS; Mini LED (Local Dimming) backlight
• Display Size: 15.04" x 8.50" x 17.25" diagonal
• Display Resolution: 3840 x 2160 pixels
• Mounting Options: flat or flush
• Input: Touchscreen
• Polarized Lens Viewability: Yes

Maps & Memory:

• Accepts Data Cards: 2 microSD™ cards (on rear of product)
• Supports USB Card Reader: Yes
• Waypoints: 5,000
• Track Points: 50,000
• Tracks: 50 saved tracks
• Navigation Routes: 100

Sensors:

• GPS: Yes
• GLONASS: Yes
• GALILEO: Yes
• BEIDOU: Yes
• Has Built-in Receiver: Yes
• Receiver: 10 Hz
• NMEA 2000 Compatible: Yes
• NMEA 0183 Compatible: Yes
• Supports WAAS: Yes
• Supports Multi-Band, Multi-Constellation GPS: Yes

Chartplotter Features:

• Smart Mode Compatible: Yes
• AIS: Yes
• DSC: Yes
• Supports Fusion-Link™ Compatible Radios: Yes
• GCV Black Box Sonar Support: Yes
• Activecaptain® Compatible: Yes
• Supports Voice Commands: Yes
• GRID (Garmin Remote Input Device) Compatible: Yes
• GRID 20 Compatible: Yes
• Wireless Remote Compatible: Yes
• Sailing Features: Yes
• Spoken Audio Alerts: Yes
• Onehelm Support: Yes

Electrical Features:

• Power Input: 10 to 32 Vdc
• Typical Current Draw at 12Vdc: 4.3A
• Maximum Current Draw at 12Vdc: 1.9A
• Maximum Power Usage at 10Vdc: 52w

Sonar Features:

• Display Sonar: Yes
• Power Output: 1 kW
• Traditional Sonar (Dual Frequency/Beam): yes (dual 1 kW)
• Supports Built-In xCHIRP: Yes
• Supports Built-In RapidReturn™: Yes (up to 2x)
• Clearvü: Yes
• Sidevü: Yes
• Panoptix™ Sonar: Yes
• Livescope: Yes

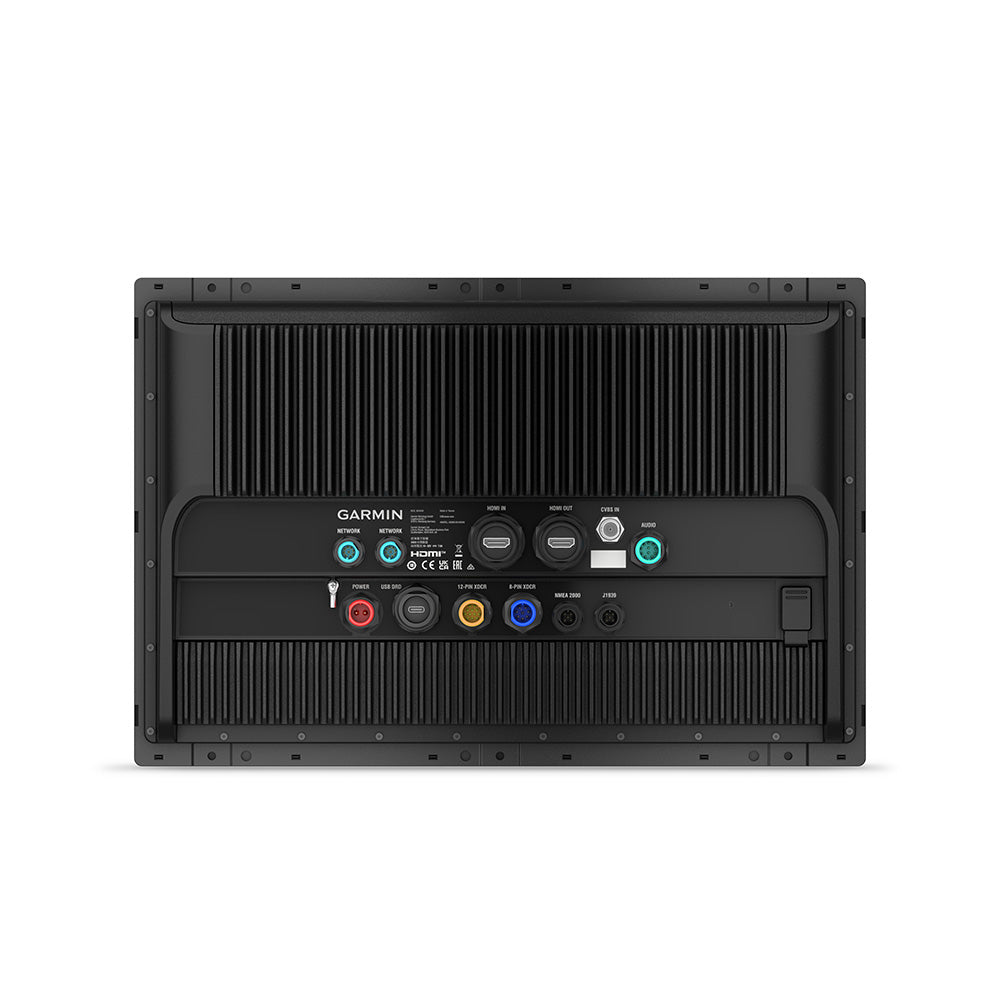

Connections:

• NMEA 2000® Ports: 1
• NMEA 0183 Input (RX) Ports: 1
• NMEA 0183 Output (TX) Ports: 1
• Video Input Ports: 1 (BNC composite); 1 HDMI (HDCP compliant)
• Video Output Ports: 1 HDMI
• J1939 Ports: 1
• Garmin Bluenet Networks Ports: 2
• USB Ports: yes (1x USB-C)
• Bluetooth® Pairing: Yes
• ANT® (Connectivity): Yes
• Garmin Wi-Fi Network (Local Connection): Yes
• Wi-Fi Frequency Bands: 2.4 GHz & 5 GHz
• Audio Output: Yes

^{1Auto Guidance+ is for planning purposes only and does not replace safe navigation operations}

WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

Specifications:

• Cartography Brand: Garmin Navionics+
• Screen Size: 17"
• Touchscreen: Yes
• Transducer Included: No
