Pacer Tinned Lug 8 AWG - #10 Stud Size - 10 Pack [TAE8-10R-10]
Tinned Lug 8 AWG - #10 Stud Size - 10 PackCreating a strong connection is essential to...
- $11.99
$13.80- $11.99
- Unit price
- per
Please hurry! Only 14 left in stock
OPENFISHERMAN FALL '23 GIVEAWAY ENDS:
151D
8H
23M
0S
Subtotal:
$11.99
10 customers are viewing this product
Couldn't load pickup availability
Description

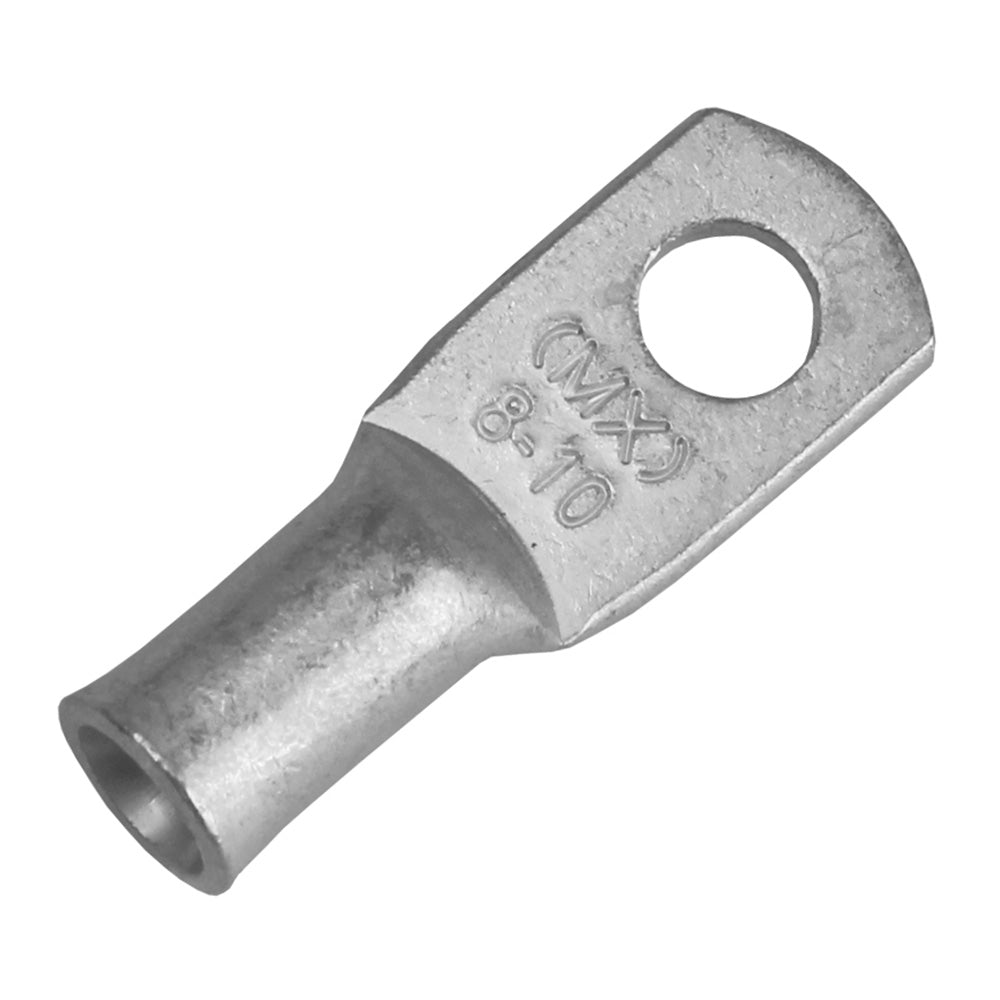

xTinned Lug 8 AWG - #10 Stud Size - 10 Pack
Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacer's closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.
Now, crimp the lug using the correct tool, and you're done. Add epoxy lined heat shrink for added durability. Pacer's closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4", 5/16", 3/8", and 1/2". Selecting the correct closed-end lug isn't an easy task. Contact a Pacer expert today with any questions that you may have.
Features:
- Tin Plated
- No exposed seams
- Rated for 600V
- Made from seamless tubes of 99.9% copper for higher conductivity
- Designed for stranded copper wires
- Larger pad area for better contact
- Cable size and stud hole stamped on pad
- Can be crimped or soldered
- Highly controlled flare to allow easy cable insertion
- Tight barrel to pad transition provides longer usable barrel length
Compliances:
- E.T.P. (Electrolytic Tough Pitch) CDA-110
- ASTM-B-152 copper rated at 100% conductivity
- UL & CSA Approved
- RoHS Compliant
- Exceeds SAE Conductivity STD J163 & J1811
Specifications:
- Wire AWG: 8
- Stud Size: #10
- Length: 1.187”
- Width: 0.438”
- Clearance: 0.344”
- Package Size: 10
Specifications:
- Gauge: 8 AWG
- Heat Shrink: No
- Package Qty: 10
- Post Size: #10
- Type: Lugs
- Box Dimensions: 0"H x 5"W x 9"L WT: 0.15 lbs
- UPC: 840248209861
