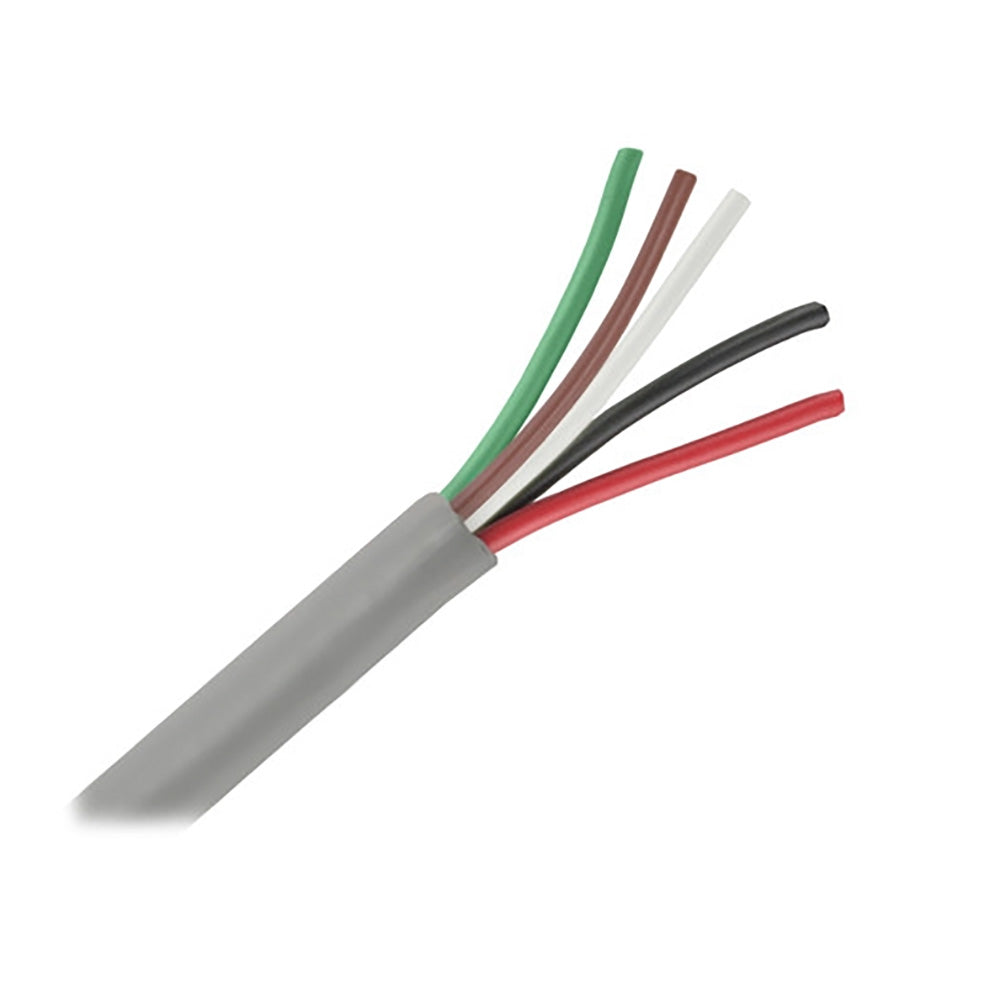

Pacer Unshielded 5 Conductor Cable - 25' - 18/5 AWG - Green, Brown, White, Black, Red [M18/5-25]
Unshielded 5 Conductor Cable - 25' - 18/5 AWG - Green, Brown, White, Black, & RedUnshielded multiconductor...
- $40.99
$50.50- $40.99
- Unit price
- per
Please hurry! Only 1 left in stock
OPENFISHERMAN FALL '23 GIVEAWAY ENDS:
151D
8H
23M
0S
Subtotal:
$40.99
10 customers are viewing this product
Couldn't load pickup availability
![Pacer Unshielded 5 Conductor Cable - 25' - 18/5 AWG - Green, Brown, White, Black, Red [M18/5-25]](http://openfisherman.com/cdn/shop/files/110402XL_1200x.jpg?v=1756866184)
Description
xUnshielded 5 Conductor Cable - 25' - 18/5 AWG - Green, Brown, White, Black, & Red
Unshielded multiconductor 18 AWG cables are used in a wide variety of applications. Oftentimes, they can be found in things like consumer electronics and industrial control equipment. They are used in advanced signal transmissions in controlled environments as well. What does all that mean? Well, essentially, it means that multiconductor cables are used for controlling equipment.
Unshielded multiconductor 18 AWG cables are constructed from finely stranded tinned copper conductors. The conductors are insulated with color-coded PVC. The now insulated conductors are covered with a durable yet flexible PVC jacket. This keeps the conductors together while offering superior protection. These cables are manufactured to meet the requirements for UL, CSA, RoHS, and NEC. Temperatures and voltages are not always the same from cable to cable.
Features:
- 25 ft. of cable
- Fully annealed stranded tinned copper per ASTM B33
- Premium-grade color-coded PVC insulation
- Grey PVC jacket—20°C to 105°C
Specifications:
- Number of Conductors: 5
- Conductor Colors: Green, brown, white, black, and red
- Conductor Stranding: 16/30
- Jacket Color: Grey
- Nom. Cap. pF/ft Between Conductors: 25.0
- Nom. Insulation Thickness: 5 conductors @ 0.016"
- Jacket Thickness (inch): 5 conductors @ 0.032"
- Nom. Cable O.D. (inch): 5 conductors @ 0.272"
Applications:
- Public address systems
- Intercoms and internal telephones
- Suitable for EIA RS-232 applications
- Remote control circuits
Compliances:
- NEC Article 800 Type CM (UL: 75°C)
- UL Style 2464 (UL: 80°C, 300V, VW-1)
- CSA CMG (CSA: 60°C) (Except 18/5)
- CE: Low voltage directive (LVD 2006/95/EC)
- RoHS compliant directive 2011/65/EU
- Vertical tray flame test (70,000 BTU)
Specifications:
- Length (Feet): 25'
- Box Dimensions: 5"H x 7"W x 7"L WT: 5.6 lbs
