Scout Wave 4" White TV Antenna Omnidirectional 25dB Gain w/10M, 75 ohms, Cable [PF AN NTV002]
Wave 4" White TV Antenna Omnidirectional 25dB Gain with 10M, 75ohm, CableThe Scout Wave is a compact-sized...
- $113.99
$152.00- $113.99
- Unit price
- per
Please hurry! Only 0 left in stock
OPENFISHERMAN FALL '23 GIVEAWAY ENDS:
151D
8H
23M
0S
Subtotal:
$113.99
10 customers are viewing this product
Couldn't load pickup availability
![Scout Wave 4" White TV Antenna Omnidirectional 25dB Gain w/10M, 75 ohms, Cable [PF AN NTV002]](http://openfisherman.com/cdn/shop/files/110620XL_1200x.jpg?v=1757972927)
Description
xWave 4" White TV Antenna Omnidirectional 25dB Gain with 10M, 75ohm, Cable

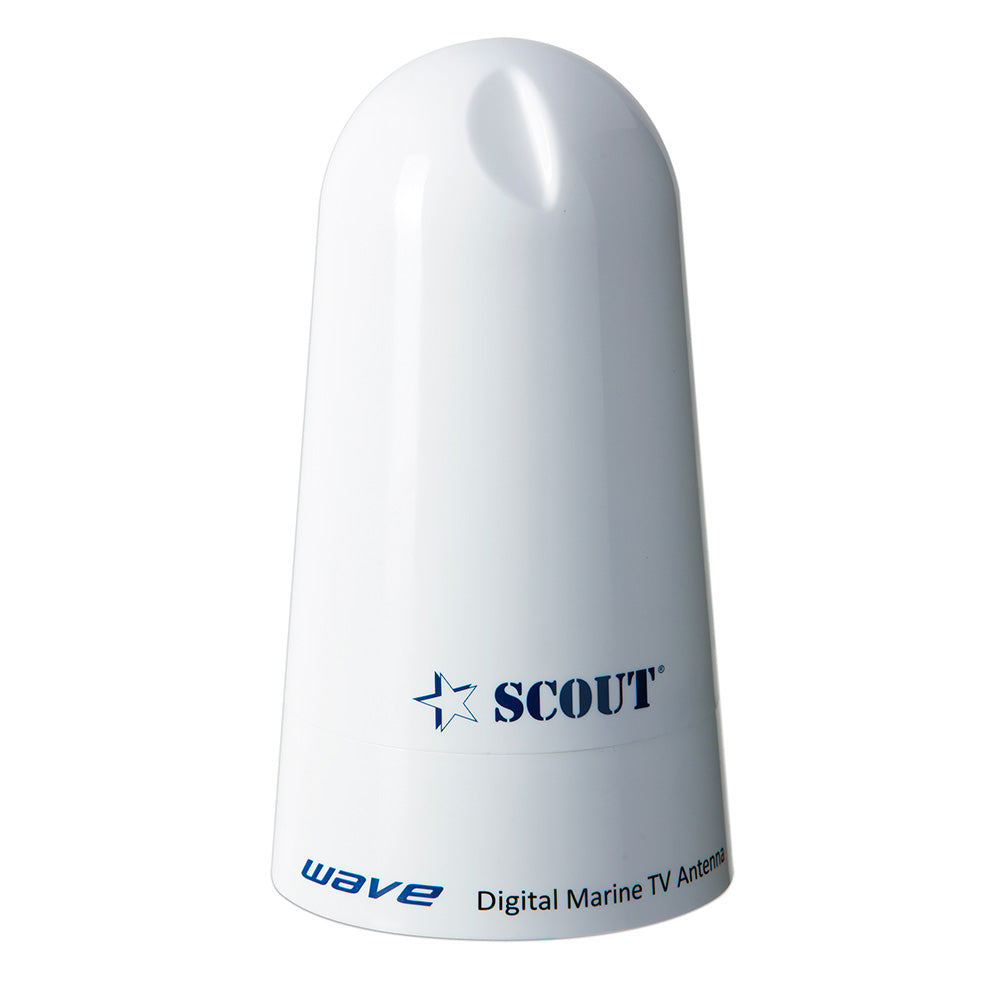

The Scout Wave is a compact-sized omnidirectional TV/FM antenna of only 105 mm (4″) diameter and 200 mm (8″) height, designed to receive all available analogue and digital terrestrial TV, FM signals through a 360-degree radius, ideal for any type of boat.
Omnidirectional design eliminates the time needed to locate the direction of the TV and radio transmitter, and the built-in high-gain amplifier (25 dB) with low noise figure guarantees an excellent picture quality, both on horizontal and vertical polarization. The splitter/power inserter included with the antenna allows you to connect two devices at the same time, a TV or an FM radio.

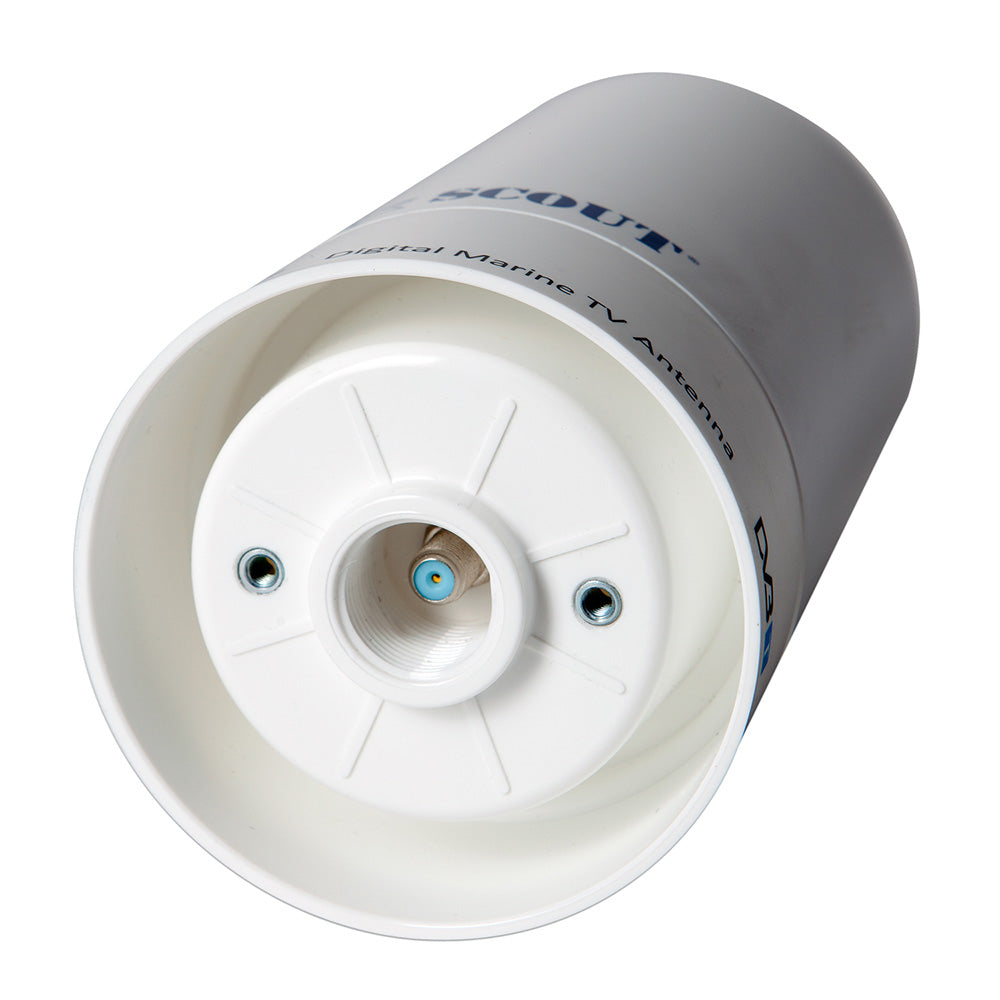

The waterproof casing is UV-inhibited, to avoid color deterioration, and easy to install both on standard 1″ x 14 threaded mounts and on deck as a permanent, through-hole mount solution (onto a non-metal surface or enclosure).
Wave is supplied together with the complete installation set that includes:
- 12V power inserter/splitter 2 outputs
- 12V fused power cable
- Coax cable 75 Ohm 10 m (33’)
- TV cable 1 m (3.3’)
- F-type connector (2 pcs)
- Screw (2 pcs)
- Washer (4 pcs)
- Grower washer (2 pcs)
- Nut (4 pcs)
Wiring of the whole system is easy and fast, and thanks to the 2-output power inserter, you can connect the TV and FM radio to the same antenna.
The exclusive design, the compact size of only 11 cm in diameter, and the superior picture quality make the Wave the perfect choice for boaters who want to enjoy premium TV and radio on board.
Features:
- Compact size
- Excellent picture quality
- Built-in high-gain amplifier (25 dB)
- Easy to install (mount/deck)
Specifications:
- Reception: Omnidirectional 360°
- Frequency Range: 40-860 MHz
- Impedance: 75 ohms
- Channels: 2-69
- Gain: 25 dB
- Input power: 12V DC
- Noise: <1.7 dB
- Output: 2
- Connectors: F
- Antenna diameter: 11 cm (4″)
- Height: 20 cm (8″)
- Material: UV-resistant ASA
Owner's Manual (pdf)
