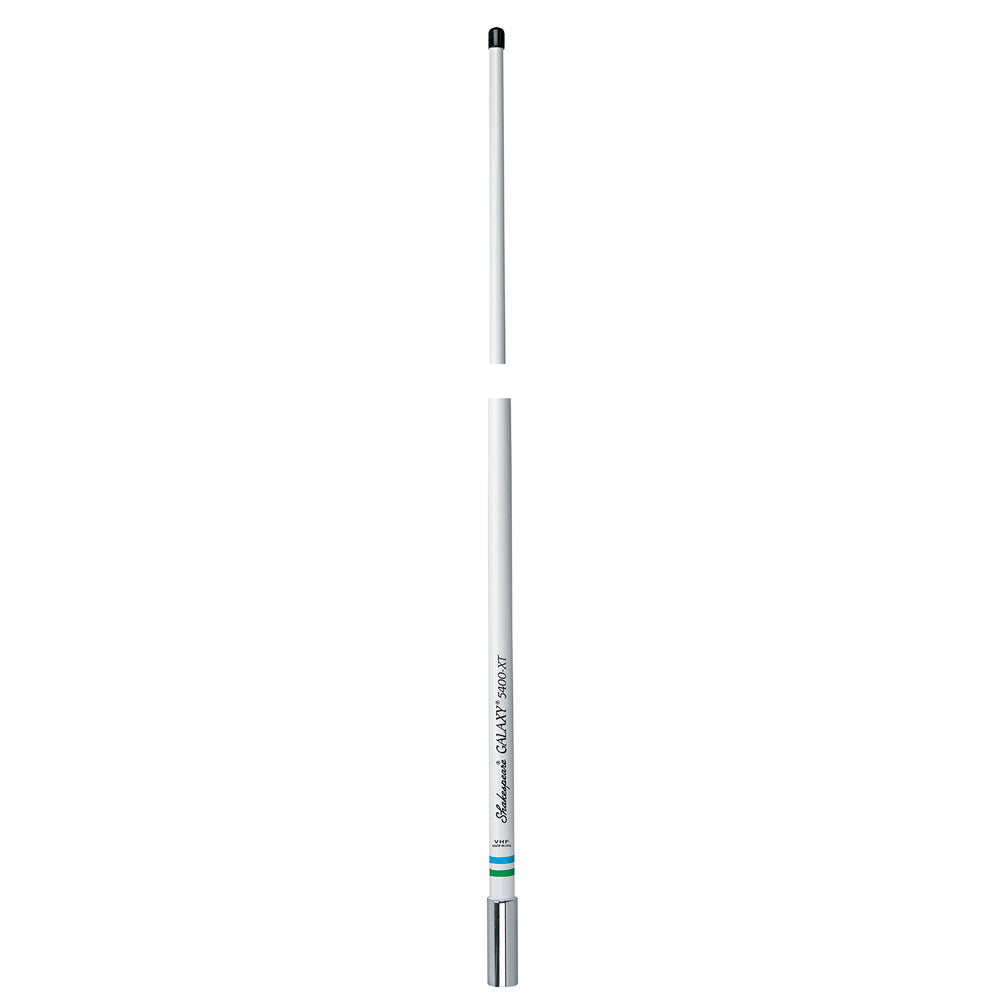

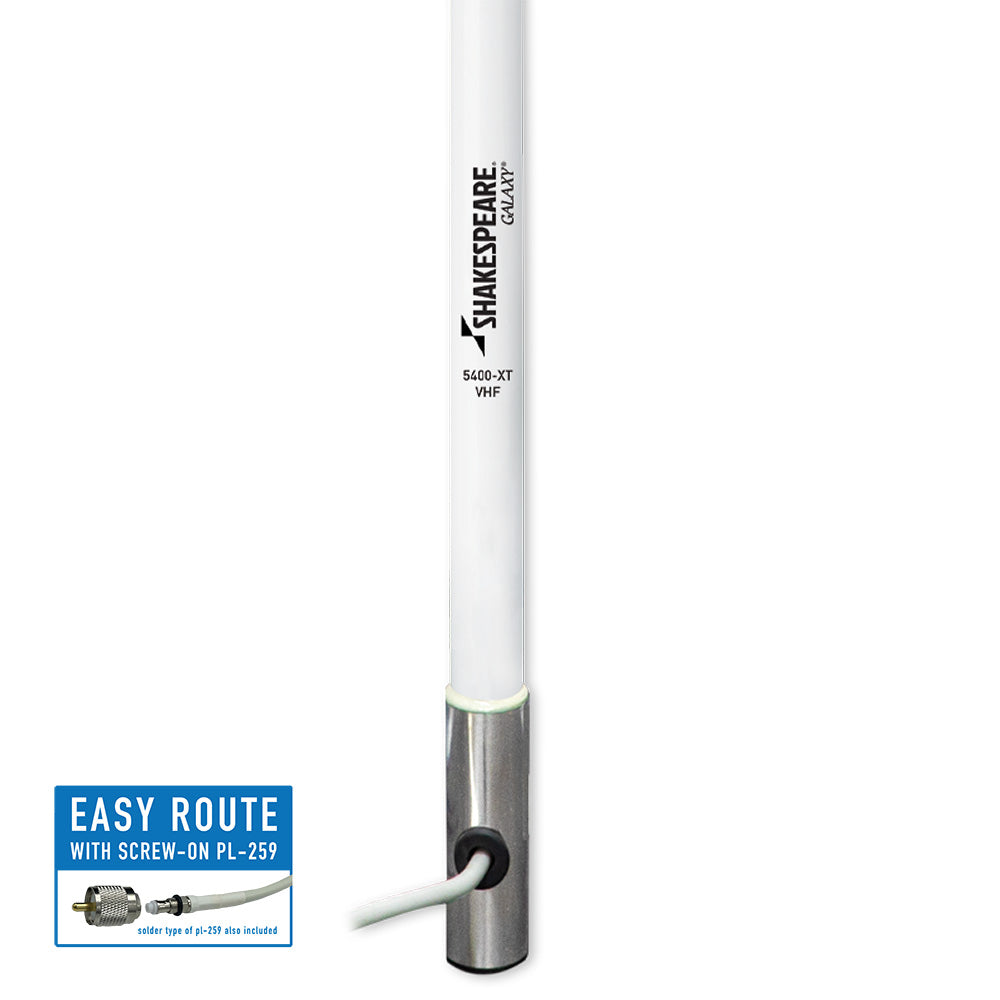

Shakespeare 5400-XT Galaxy 4' VHF Antenna [5400-XT]
SPC-14037Order Qualifies for FREE Ground Shipping
5400-XT Galaxy 4' VHF Antenna
Center-fed 1/2 wave coaxial sleeve
The compact Galaxy® 5400-XT is an outstanding, general purpose 4' antenna of heavy duty construction for general purpose communications. Its at home on T-tops, hard-tops, and other positions aloft, where its small size can deliver maximum range.
Features:
- Brass and copper elements for maximum range
- Stainless steel ferrule with standard 1"-14 thread
- Includes 20' RG-8/X cable and a PL-259 connector
- Suggested mount: Shakespeare Style 4187 Ratchet Mount
- One section
- Shakespeare Limited Warranty: 5 years
- Includes FME Cables
Technical Specifications:
| Frequency: | VHF Marine Band |
| Bandwidth: | 5 MHz within 2.0:1 VSWR |
| SWR: | nominally 1.5:1 at 156.8 MHz |
| Gain: | 3 dB |
| Max Input (Watts): | 50 watts |
| Height (feet): | 4 |
Specifications:
- Antenna Band: VHF
- Color: White
- Construction: Fiberglass
- Ferrule Type: Stainless Steel
- Length (Inches): 4'
- Box Dimensions: 3"H x 3"W x 52"L WT: 2.5 lbs
- UPC: 719441100605
