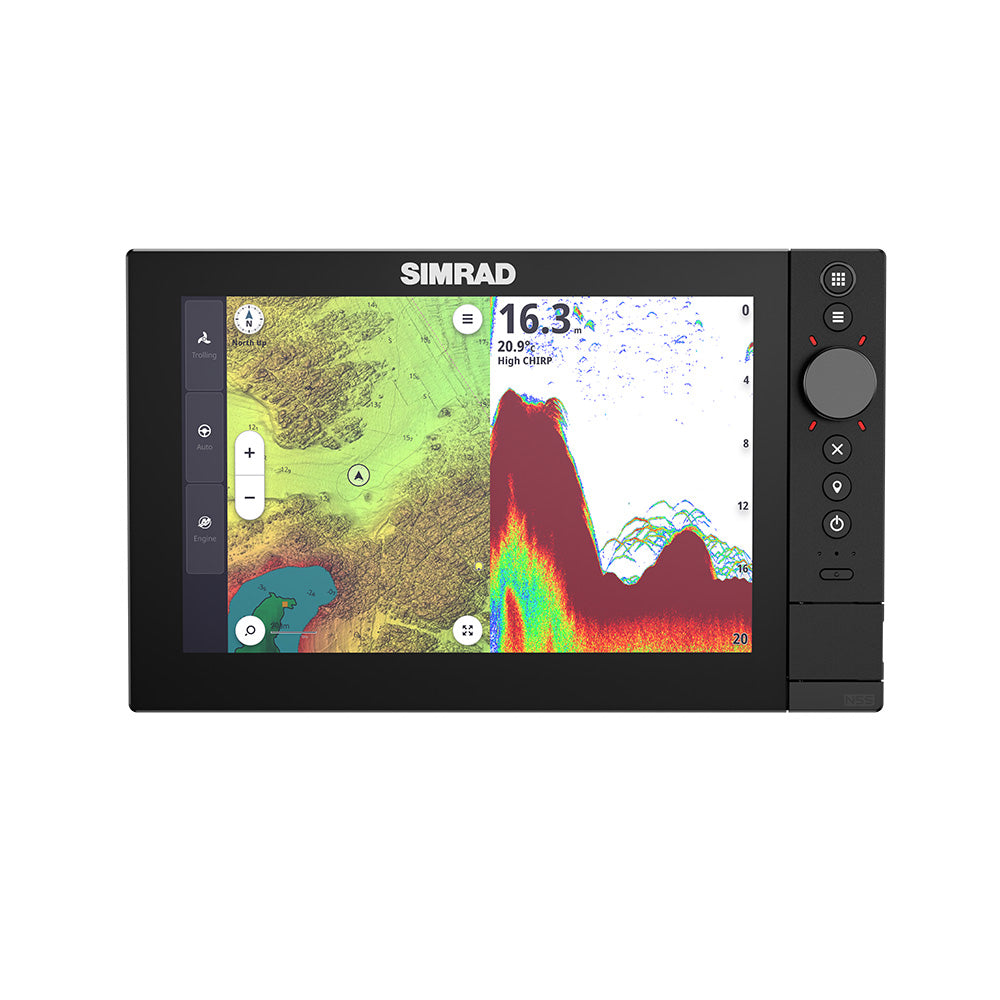

Simrad NSS4-10 10" MFD - No Sonar [000-16275-001]

NSS4-10 10" MFD - No Sonar

NSS 4 brings a trio of control options, designed to provide maximum control in all settings and conditions. The touchscreen is ideal for exploring charts, which is smoother than ever on NSS 4. Drag to discover new areas, pinch to zoom in and out, and tap for more detail on areas of interest. The rotary dial lets you scroll through menus and adjust data displays in an instant. The keypad brings a selection of one-touch functions for easy navigation.

Main Menu/Pages Button

Switch instantly to full-screen mode, giving a clear overview of all key data without clutter.

App Menu

Provides quick access to the settings menu to make tweaks on the fly.

Rotary Dial

Useful for a variety of functions: menu navigation, Used to zoom in/out, push to select, and more.

X Button

Return to the previous screen or cancel the current action.

Waypoint Button

A super quick and easy way to mark waypoints accurately on your chart.

Power Button: Power your device on and off.

Configurable Custom Keys

These fully customizable buttons are designed to provide instant access to your favorite apps and features. The buttons can be assigned multiple functions, each triggered by a short or long press. (10” includes only one custom key)

Dual SD Card Slot

Convenient front-facing slots for easy access to chart cards and memory cards.

Unmatched Speed

Experience the power of a lightning-fast Qualcomm® 8-core processor, designed to keep up with every move on the water.

Instant Response

Navigate seamlessly from one app to the next with zero lag and smooth transitions. So you can focus on boating and fishing – and not on the screen.

Ultra-fast Charting

NSS 4 delivers our fastest-ever auto-routing and rapid chart rendering, helping you hit your next spot quickly.

Advanced Angling Tech for the Ultimate Sportfishing System

Tap into intelligent sonar technology via sonar modules or another networked display. Active Imaging™ HD provides ultra-clear, high-resolution sonar that reveals fish and underwater structures in stunning detail – making it easier to pinpoint the best angling spots.

Seamless integration with the full suite of Simrad® electronics puts you in total control. Connect effortlessly with our most powerful HALO® radars, the RECON™ trolling motor, the incredible Simrad® app, and more...

Built for Complete Customization

Make NSS 4 yours with its extensive range of customization options. Build instrument screens that work for you, tweaking our pre-configured dashboards to match your boating style. And create custom split screens based on your preferences and screen setup.

Features:

• A trio of hybrid controls: touch, rotary, and keypad
• Premium glass-to-edge design
• Lightning fast Qualcomm® 8-core processor
• Redesigned operating system
• Support for various 1kW CHIRP echo sounders
• Support for Active Imaging™ & Active Imaging™ HD
• Support for C-MAP® X-gen charts and others
• Simrad® RECON™, Rhodan® and Motorguide® Trolling Motor Compatible
• Compatible with Simrad suite: S3100 & S5100 sonar modules, radar, and more...
• Support for Mercury®, CZone®, SiriusXM®, and more...
• 2-year limited warranty

Autopilot

• Maneuvers / Turn Patterns: U-Turn, C-Turn, Spiral, S-Turn, Square, Zig-zag, Depth
• Steering Modes: Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav

Cartography

• Chart Format: C-MAP Tile (CMT) Discover X, Reveal X C-MAP Tile (CMT) Reveal X
• Charts Supported: C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StikeLines (check with provider for available content)

Connectivity

• Bluetooth: Bluetooth 4.0 with support for Bluetooth Classic (currently not used)
• Ethernet: 1 port (X-Coded M12 GbE) 1 port (yellow, 5-pin)
• NMEA 0183: No
• NMEA 2000: 1 x NMEA 2000 Micro-C port, 1 LEN
• PC Connectivity: No
• Video: Video In, IPCAM-1, FLIR 232/300 series. ONVIF IP Camera
• WiFi: Wi-Fi 5 (IEEE 802.11ax)

Display

• Backlight Color: White
• Resolution: 1280 x 800
• Screen Brightness: >1200 nits
• Size and Type: 10" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity, and sunlight viewability with polarized sunglasses
• Viewing Angles: 80° top/bottom, 80° left/right
• Waterproof rating: IPX6 and IPX7

Electrical

• Power Consumption, max.: 28 W
• Recommended Fuse Rating: 5 A
• Supply Voltage: 12/24 V DC (10 - 31.2 V DC min-max)
• Humidity: IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr)

GPS

• Correction: 10 Hz high-speed update (internal)
• GPS Receiver Channels: 32 Channels
• Position Accuracy: Horizontal Accuracy 3 m (9.8 ft)
• Update rate: 10Hz

MFD

• AIS: Receive AIS data over NMEA 2000
• Autopilot: NAC-1, NAC-2, NAC3, NAC-D compatible
• Cartography included: Worldwide basemap (not for navigation). A detailed chart card on the network required
• Cartography supported: C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StikeLines (check with provider for available content)
• Digital Switching: Czone / DDS
• External Storage: 2x (microSD®, SDHC®)
• GPS: 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, and QZSS SBAS (WAAS)
• Radar (inc. compatibility): Halo dome radars, Halo open array radars, 3G/4G, 10/25 kW HD Radars
• Sonar (inc. compatibility): No built-in Echosounder ports. Compatible with Network Sonar modules S3100, S5100, and other MFDs with echosounder ports
• Waypoints, Routes, Tracks: 10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: NSS/NSO evo2/3 maximums will apply if on the same network
• Compass Safe Distance - Metric, imperial: 35 cm (1.15 ft)

Physical

• Dimensions (W x H x D): Display only: 287.9 mm x 176.1 mm x 79.6 mm (11.33″ x 6.93″ x 3.13″) With bracket: 315.8 mm x 196.5 mm x 79.6 mm (12.43″ x 7.73″ x 3.13″)
• Mounting Type: Bracket mount (bracket supplied). Rear mount (brackets supplied)
• Weight: 1.8 kg (3.97 lb)

Other

• Warranty Period: 2 Years
• Interface: Hybrid multi-touch screen, buttons, and rotary knob

Specifications:

• Cartography Brand: C-Map Reveal X
• Internal/External Antenna: Internal
• Screen Size: 10"
• Touchscreen: Yes
• Box Dimensions: 7"H x 14"W x 21"L WT: 10.4 lbs
• UPC: 9420064135417
