Trident Marine 5/16" x 50 Boxed Barrier Lined B1-15 EPA Compliant Outboard Fuel Line Hose - Gray [305-0566]
5/16" x 50' Boxed Barrier Lined B1-15 EPA Compliant Outboard Fuel Line Hose - GrayThis hose is...
- $115.99
$185.56- $115.99
- Unit price
- per
Please hurry! Only 3 left in stock
OPENFISHERMAN FALL '23 GIVEAWAY ENDS:
151D
8H
23M
0S
Subtotal:
$115.99
10 customers are viewing this product
Couldn't load pickup availability
Description
x5/16" x 50' Boxed Barrier Lined B1-15 EPA Compliant Outboard Fuel Line Hose - Gray
This hose is built with the best fuel and age-resistant formulations and a unique "Barrier Liner" on the inside surface of the tube, so fuel is not in direct contact with rubber. This greatly reduces fuel permeation and prevents ethanol degradation of the rubber tube, which can cause small pieces of rubber to reach and damage the engine. That is particularly important considering the prospect of higher ethanol blends (E-15) available at gas stations next year.
Features:
- Provides extraordinary resistance to fuel permeation, aging, heat, cold, and ozone
- Also, provides excellent rope-like bend-ability and fitting retention
- For both gasoline (including ethanol blends up to E85) and diesel (including bio diesel blends up to 100%)
- EPA Certified and CARB Executive Order for low permeation Type B1-15
- NMMA Type Accepted & CE certified
Application:
- Marine Fuel Hose for distribution, return, vent and transfer
- For all marine fuels including gasoline, alcohol blends (CE-10), diesel and bio-diesel

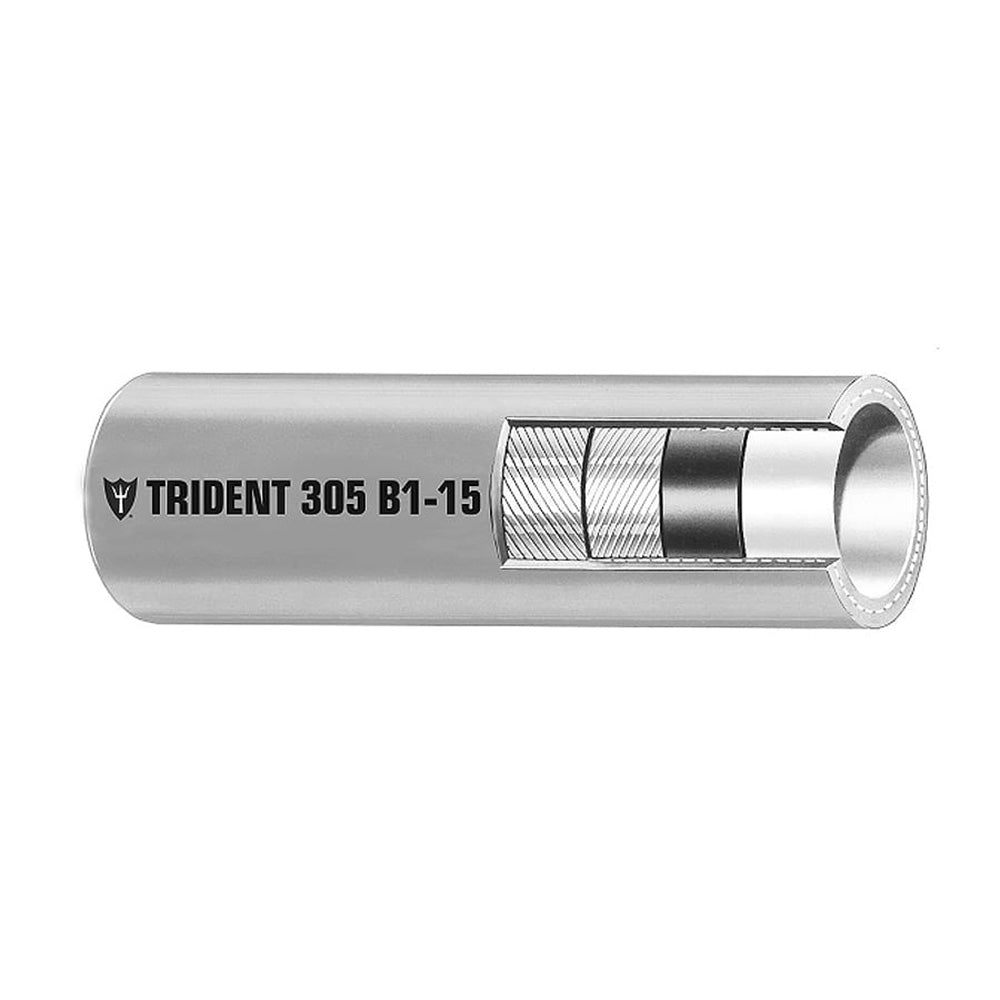

Construction:
- Tube: Fluoroplastic Internal Barrier
- Cover: Gray CPE Rubber
- Reinforcement: 2-Spiral Polyester Plies
- Temperature Range: -20°F to 212°F (-28ºC to 100ºC)
- Length: 50’ (15m) Boxed
Specifications:
- Inner Diameter: (inch) 5/16" / (mm) 7.92
- Outer Diameter: (inch) 0.500 / (mm) 12.7
- Burst Pressure: (psi) 175 / (mpa) 1.21
- Working Pressure: (psi) 35 / (mpa) 0.24
- Bend Radius: (inch) 2.5" / (mm) 63.5
- Weight: (lb/100 ft.) 7.8 / (kg/m) 0.116
- Permeation Rate (Standard is (15g/m^2/24hrs (CE10)): 5.0
*The #305 series exceeds ABYC H-24, SAE J1527, ISO 8469 B1, USCG Type B1-15
Specifications:
- ID Diameter (inches): 5/16"
- Length (Feet): 50'
- Box Dimensions: 3"H x 18"W x 18"L WT: 5.1 lbs
- UPC: 704917018058
Quick Guide (pdf)
