Airmar B117 50/200kHz 600W Mix Match 0 Deadrise [B117-DT-MM]

Airmar B117 50/200kHz 600W Mix Match 0 Deadrise [B117-DT-MM]

B117 50/200kHz 600W Mix & Match 0° DeadriseAirmar’s entry-level B117 features a single, 50/200 kHz, dual-frequency, ceramic...
Vendor: Airmar
SKU: SPC-107453
Availability: Out Of Stock
Product Type: Transducers
$192.49
$192.49
Please hurry! Only 0 left in stock
OPENFISHERMAN FALL '23 GIVEAWAY ENDS: 151D 8H 23M 0S
Subtotal: $192.49
10 customers are viewing this product
Airmar B117 50/200kHz 600W Mix Match 0 Deadrise [B117-DT-MM]

Airmar B117 50/200kHz 600W Mix Match 0 Deadrise [B117-DT-MM]

$192.49
Airmar B117 50/200kHz 600W Mix Match 0 Deadrise [B117-DT-MM]

Airmar B117 50/200kHz 600W Mix Match 0 Deadrise [B117-DT-MM]

$192.49
Description
Description
x

B117 50/200kHz 600W Mix & Match 0° Deadrise

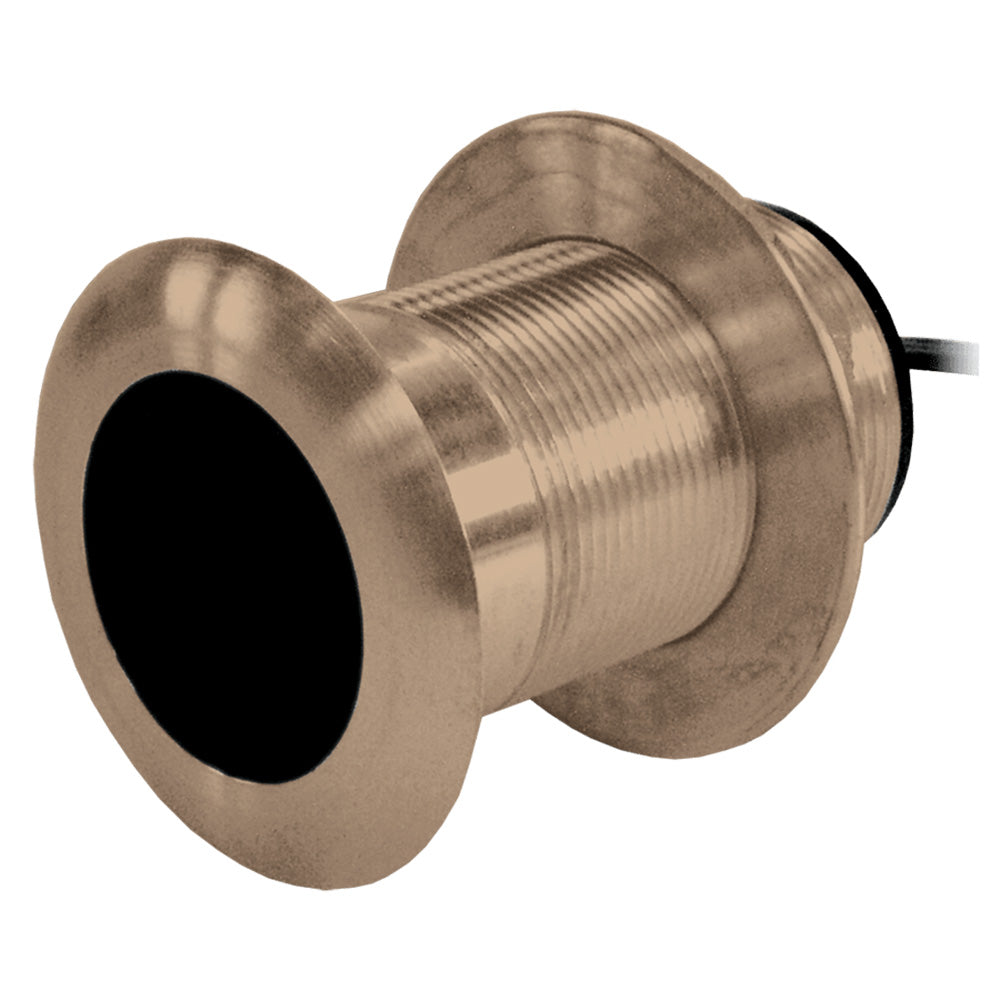

Airmar’s entry-level B117 features a single, 50/200 kHz, dual-frequency, ceramic element in a low-profile bronze housing. The nearly-flush design minimizes drag with only 5 mm (3/16") extending outside the hull.

Features:

  • Depth only or depth and fast-response water-temperature sensing
  • 600 W of power
  • Dual-frequency element:
  • 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
  • 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
  • Right-angle cable exit saves space and protects the transducer if stepped on
  • The included rubber washer allows tightening of the hull nut to irregular hull surfaces
  • Low-profile, bronze housing has minimal drag
  • Plastic (P319) and stainless steel (SS60) models are also available to accommodate all hull materials

Specifications:

  • Power Rating: 600 W
  • Max Deadrise Angle: 12°
  • Housing: Bronze
  • Functions: Depth, Temperature
  • Hull Material: Fiberglass or wood
  • Max Vessel LOA: Up to 8 m (26')
  • Hole Size: 51 mm (2")
  • Acoustic Window: Urethane
  • Common Use: Leisure/Yachting, Fishing
  • Conventional Beam: 45°/12°
  • Max Deadrise: Best performance through 7°. Accommodates up to 12°
  • Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700')
  • Mounting Style: Low Profile Thru-Hull
  • Retractable housing: No
  • Single or Dual Frequency: Conventional Dual Frequency
  • Weight: 0.9 kg (2 lbs.)
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Chirp: No
  • Imagining: Standard
  • Mounting Style: Thru-Hull
  • Speed Included: No
  • Temperature: Yes
  • Box Dimensions: 3"H x 6"W x 8"L WT: 2.6 lbs
  • UPC: 801769000238
