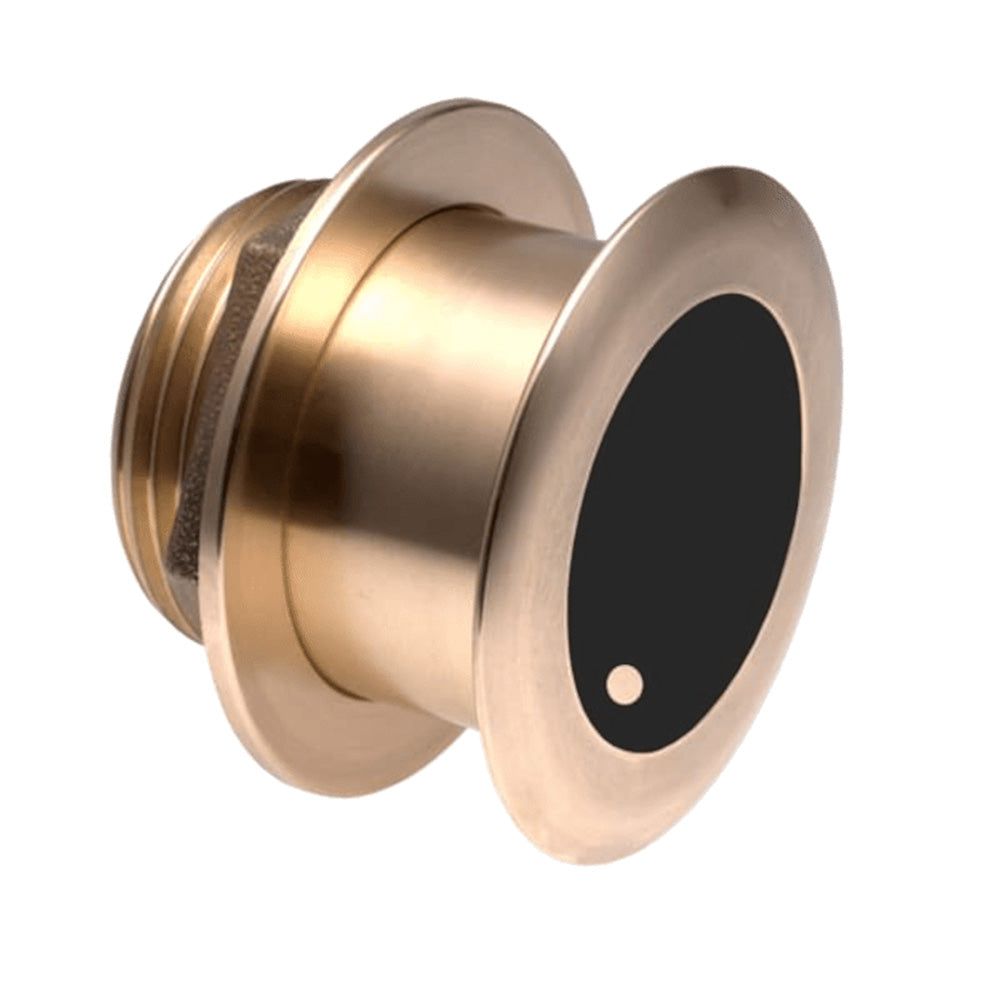

Airmar B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 12 Tilted Element - Requires Mix Match Cable [B164-12-MM]
B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 12° Tilted Element - Requires Mix &...
- $1,299.99
$1,429.99- $1,299.99
- Unit price
- per
Please hurry! Only 1 left in stock
OPENFISHERMAN FALL '23 GIVEAWAY ENDS:
151D
8H
23M
0S
Subtotal:
$1,299.99
10 customers are viewing this product
Couldn't load pickup availability
![Airmar B164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 12 Tilted Element - Requires Mix Match Cable [B164-12-MM]](http://openfisherman.com/cdn/shop/files/113442XL_1200x.jpg?v=1773797676)
Description
xB164 Bronze Thru-Hull - 50/200 kHz - 1 kW - 12° Tilted Element - Requires Mix & Match Cable
12° tilted version for 8 to 15° hull deadrise angles. Step up to a 1 kW—without a fairing! The 1 kW, flush-mount, Tilted Element™ transducer is perfect for fast, trailered vessels that cannot accommodate a High-performance Fairing. The flush-mounted, bronze housing extends less than 6.35 mm (1/4") below the hull so that it can sit on trailer rollers and bunks. The ceramic arrays are tilted within the housing, providing a perfectly vertical beam with maximum energy at the point directly below the boat.
Features:
- Depth and fast-response water-temperature sensing
- 1 kW of power
- Dual-frequency elements:
- 50 kHz with a wide 22° beamwidth for depth performance to 549 m (1800')
- 200 kHz with a 6° beamwidth for depth performance to 244 m (800')
- Interfaces to any 600 W or 1 kW echo sounder
- Engineered for center-console and trailered boats
- Low-profile bronze housing extends less than 6.35 mm (0.25") below the hull
- No effect on the boat’s running performance
- Available in a stainless steel housing (SS164) for use in all hull materials
- Patented Xducer ID® technology
Specifications:
- Acoustic Window: Urethane
- Cable-Length: 2 M (6.5')
- Common Use: Leisure/Yachting, Fishing
- Connector: Airmar 9-Pin (MM1)
- Conventional Beam: 22°x20°/6°
- Country of Origin: USA
- Deadrise Range: 8° to 15°
- Frequency Band: 50/200 kHz
- Material: Bronze
- Max Deadrise: Up to 15°
- Max Depth: Low frequency- 549 m (1800'), High frequency- 244 m (800')
- Mix and Match Series: 9-Pin 1000 Watt
- Mounting Style: Tilted Element Thru-Hull
- Retractable housing: No
- Sensor Connector: MM1
- Single or Dual Frequency: Conventional Dual Frequency
- Tilt Angle: 12°
- Tilted Element: Yes
- Weight: 2.7 kg (6 lbs)
- Power Rating: 1 kW
- Functions: Depth, Temperature
- Hull Material: Fiberglass or wood
- Max Vessel LOA: Up to 11 m (36')
- Hole Size: 95 mm (3-3/4")
- Usable Shaft Length: 71 mm (2.80")
- Display Connector: Cable Required
Specifications:
- Cable Length (Feet): 6.5'
- Chirp: No
- Imaging: Standard
- Mounting Style: Thru-Hull
- Speed Included: No
- Temperature: Yes
- Box Dimensions: 8"H x 11"W x 12"L WT: 9.6 lbs
