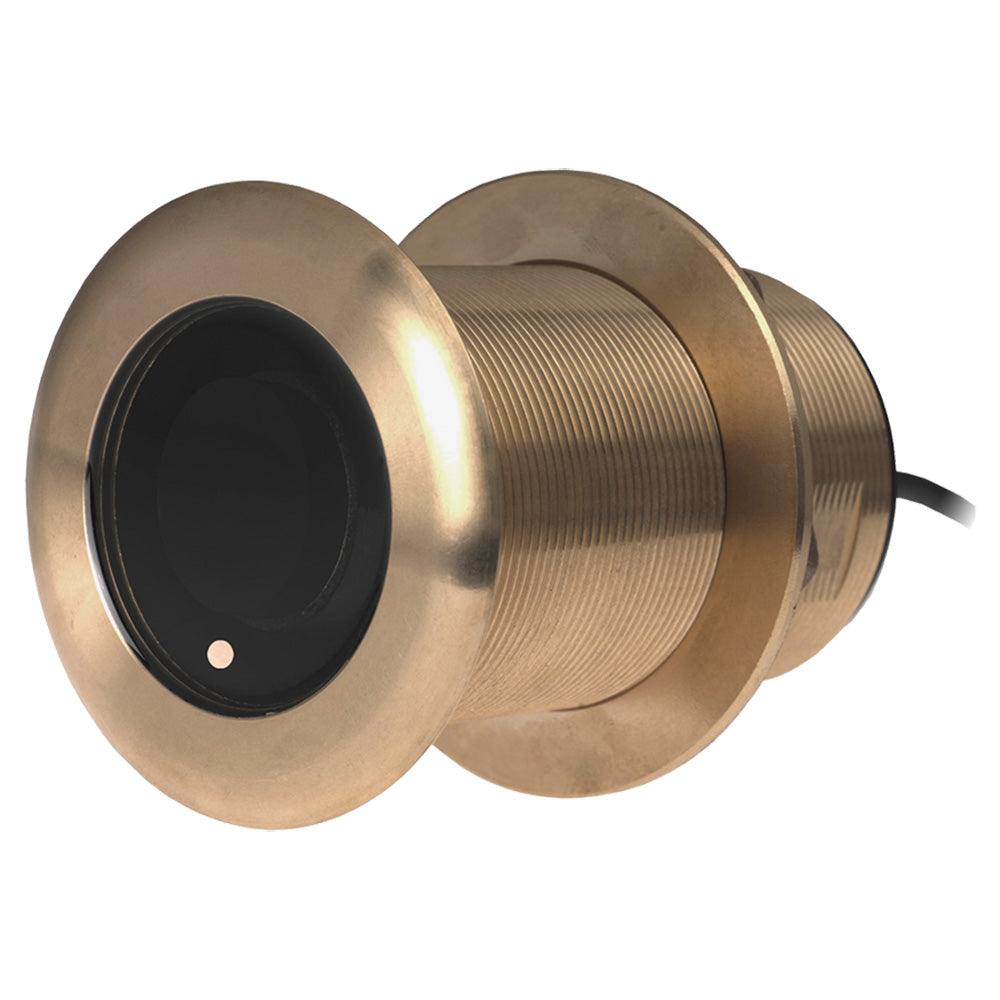

Airmar B60 Thru-Hull Transducer 20 Tilt 9-Pin f/Navico xSonic [B60-20-9N]
B60 Thru-Hull Transducer 20° Tilt 9-Pin for Navico xSonicThe B60 is a 600W, 50/200 kHz transducer that...
- $389.00
$429.99- $389.00
- Unit price
- per
Please hurry! Only 8 left in stock
OPENFISHERMAN FALL '23 GIVEAWAY ENDS:
151D
8H
23M
0S
Subtotal:
$389.00
10 customers are viewing this product
Couldn't load pickup availability
![Airmar B60 Thru-Hull Transducer 20 Tilt 9-Pin f/Navico xSonic [B60-20-9N]](http://openfisherman.com/cdn/shop/files/87816XL_1200x.jpg?v=1734462223)
Description
xB60 Thru-Hull Transducer 20° Tilt 9-Pin for Navico xSonic
The B60 is a 600W, 50/200 kHz transducer that integrates Airmar’s popular, Tilted Element™ feature. This Tilted Element transducer has the ceramic element fixed at a 20° angle within the housing. When the transducer is installed almost flush with the hull, the tilt of the element corrects for the hull deadrise angle. Orienting the beam directly down ensures maximum echo returns to the transducer for more accurate depth readings.
Features:
- Depth and fast-response water temperature sensing
- 600 W of power
- Dual-frequency element:
- 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
- 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
- Perfect for center-console or trailered boats
- Low-profile bronze housing extends only 5 mm (3/16") outside the hull
- No effect on your boat’s running performance
- Bronze housing for fiberglass or wood hull
- Also available in a stainless steel housing (SS60) for use with all hull materials
Specifications:
- Power Rating: 600 W
- Max Deadrise Angle: 24°
- Housing: Bronze
- Functions: Depth, Temperature
- Hull Material: Fiberglass or wood
- Max Vessel LOA: Up to 8 m (26')
- Hole Size: 60 mm (2-3/8")
- Usable Shaft Length: 68.5 mm (2.70")
- Acoustic Window: Urethane
- Common Use: Leisure/Yachting, Fishing
- Conventional Beam: 45°/12°
- Max Deadrise: Up to 24°
- Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700')
- Mounting Style: Tilted Element Thru-Hull
- Retractable housing: No
- Single or Dual Frequency: Conventional Dual Frequency
- Tilted Element: Yes
- Weight: 1.4 kg (3 lbs.)
Specifications:
- Mounting Style: Thru-Hull
- Pins: 9-Pin
- Box Dimensions: 2"H x 8"W x 8"L WT: 5.8 lbs
Owner's Manual (pdf)
Brochure (pdf)
