Airmar B744VL Bronze Thru-Hull 50/200 600W w/FB 8-Pin f/Garmin [B744V-8G]
B744VL Bronze Thru-Hull 50/200 600W with FB 8-Pin for GarminThe B744VL is a TRIDUCER® Multisensor featuring depth,...
- $559.99
$619.99- $559.99
- Unit price
- per
Please hurry! Only 0 left in stock
OPENFISHERMAN FALL '23 GIVEAWAY ENDS:
151D
8H
23M
0S
Subtotal:
$559.99
10 customers are viewing this product
Couldn't load pickup availability
![Airmar B744VL Bronze Thru-Hull 50/200 600W w/FB 8-Pin f/Garmin [B744V-8G]](http://openfisherman.com/cdn/shop/files/109056XL_1200x.jpg?v=1748359007)
Description

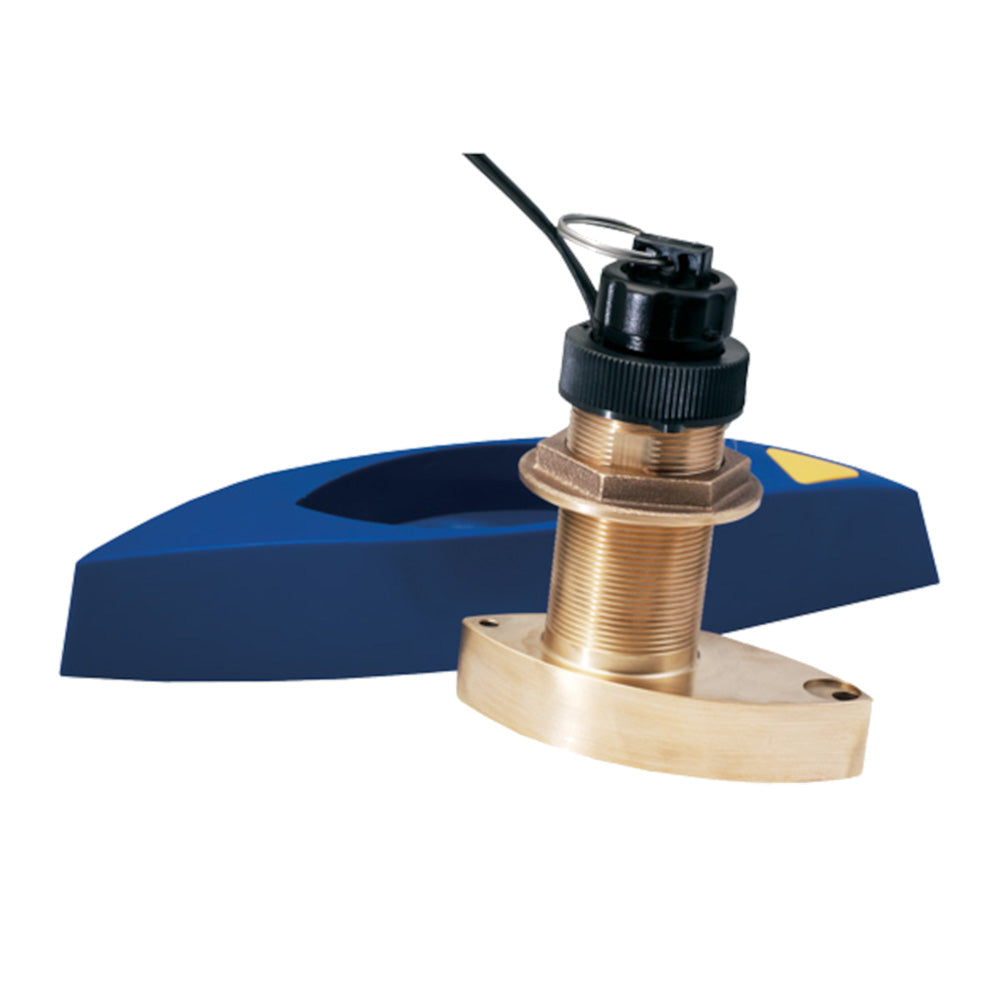

xB744VL Bronze Thru-Hull 50/200 600W with FB 8-Pin for Garmin
The B744VL is a TRIDUCER® Multisensor featuring depth, speed, and temperature in a single housing. The 50/200 kHz, dual-frequency, single, ceramic element provides great target detail in shallow water at 200 kHz and good deep-water bottom tracking at 50 kHz. The B744VL’s extended stem length has the extra height needed for steep-deadrise vessels or thick, cored-fiberglass or wood hulls. The required High-performance Fairing gives excellent results at speeds up to 30 knots (34 MPH).
Features:
- Depth, speed, and fast-response water-temperature sensing in one housing
- 600 W of power
- Dual-frequency element:
- 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
- 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
- Bronze housing with a High-performance Fairing for optimal bottom tracking at higher speeds
- Self-closing water valve reduces water flow into the hull when the paddlewheel insert is being replaced with the blanking plug
- Fins on the sides of the paddlewheel cavity improve accuracy in cross-flow conditions
- The extra-length housing (B744VL) allows mounting in a thicker and/or high-deadrise hull
Specifications:
- Power Rating: 600 W
- Max Deadrise Angle: 24°
- Housing: Bronze
- Functions: Depth, Speed, Temperature
- Hull Material: Fiberglass or wood
- Max Vessel LOA: Up to 9 m (30')
- Hole Size: 51 mm (2")
- Usable Shaft Length: 121 mm (4.75")
- Acoustic Window: Urethane
- Common Use: Leisure/Yachting, Fishing
- Conventional Beam: 45°/12°
- Max Deadrise: Up to 24° with fairing
- Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700')
- Mounting Style: Thru-Hull with Fairing
- Retractable housing: Yes
- Single or Dual Frequency: Conventional Dual Frequency
- Tilted Element: No
- Weight: 2.5 kg (5.5 lbs.)
